Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).

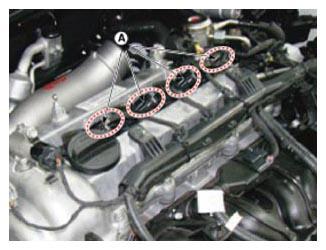

    Fig 1: Identifying Ignition Coil Connector
    G09150272Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Removing Ignition Coil Connector
    G09150273Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ignition coil (A).

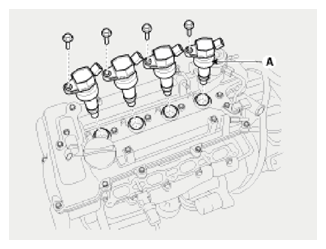

    Fig 3: Identifying Ignition Coil With Mounting Bolts
    G09150271Courtesy of HYUNDAI MOTOR AMERICA
