Repair Procedures: Removal

Set shift lever to "N" position.
Remove the air duct.
(Refer to "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to "BATTERY ")
Disconnect the inhibitor switch connector (A).
Remove the shift cable mounting nut (B).
Tightening torque:

0.8 ~ 1.2 kgf.m

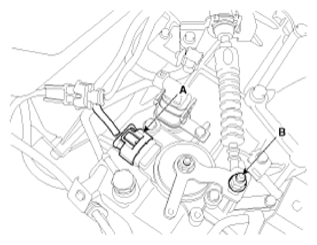

Fig 1: Identifying Inhibitor Switch Connector And Shift Cable Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the manual control lever (B) and the washer after removing a nut (A).
Tightening torque:

1.8 ~ 2.5 kgf.m

Fig 2: Identifying Manual Control Lever And Nut
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Using a SST (09480-A3800), fix the inhibitor manual control lever in the N jig hole (A) when you assemble the inhibitor (B).

Fig 3: Fixing Inhibitor Manual Control Lever In N Jig Hole Using Tool
Courtesy of HYUNDAI MOTOR AMERICA
Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

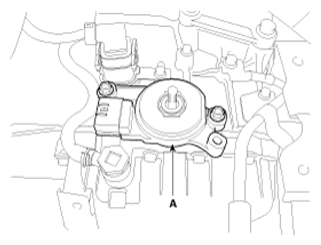

Fig 4: Identifying Inhibitor Assembly
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly.
