Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
Drain the coolant.
(Refer to "COOLANT ")
Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

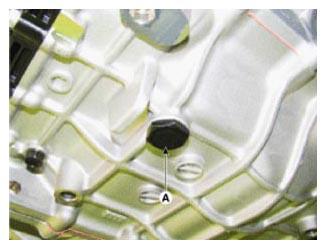

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The gasket of the drain plug use new one.
Remove the ATF Injection hole (eyebolt) (A).
Tightening torque:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

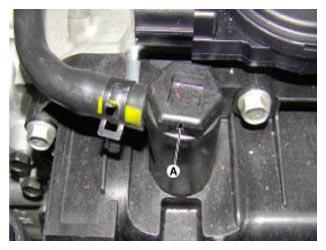

Fig 2: Identifying ATF Injection Hole (Eyebolt)
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The O-Ring (A) of the eyebolt use new one.

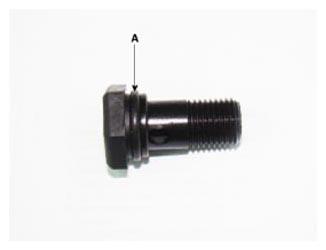

Fig 3: Identifying Eyebolt O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the valve body cover (A).
Tightening torque:

(A) 13.7~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 4: Identifying Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Use new valve body gasket (A).
Fig 5: Identifying Valve Body Gasket
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the oil temperature sensor connector (A).

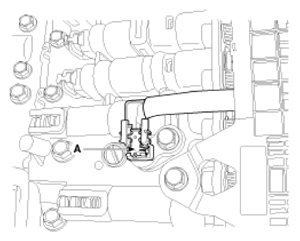

Fig 6: Identifying Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

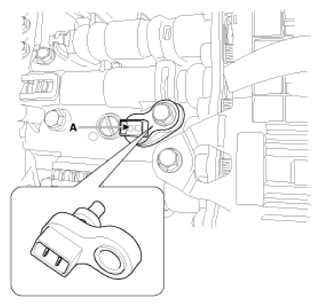

Fig 7: Identifying Oil Temperature Sensor
Courtesy of HYUNDAI MOTOR AMERICA
