Circuit Diagram: (A/T)

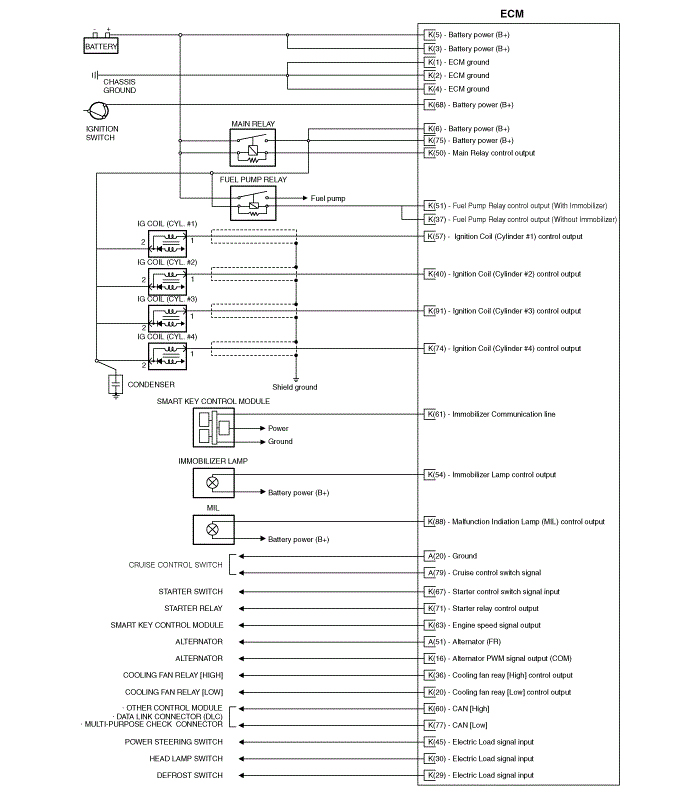

Fig 1: Engine Control Module Circuit Diagram (1 Of 4)
G00556636Courtesy of HYUNDAI MOTOR AMERICA

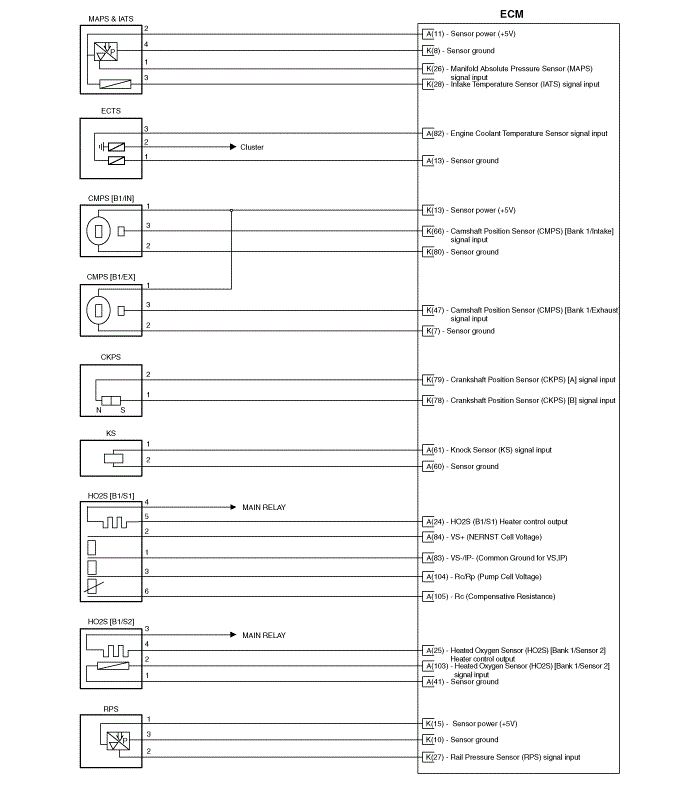

Fig 2: Engine Control Module Circuit Diagram (2 Of 4)
G00556637Courtesy of HYUNDAI MOTOR AMERICA

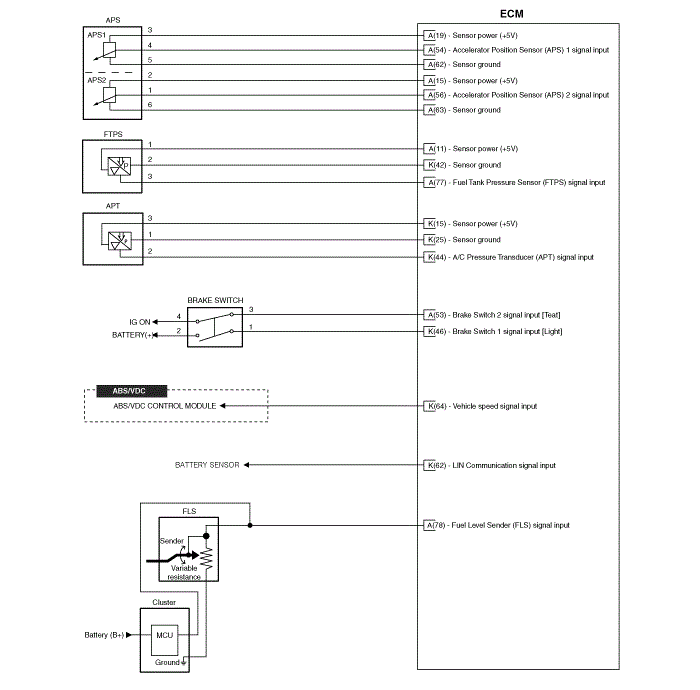

Fig 3: Engine Control Module Circuit Diagram (3 Of 4)
G00556638Courtesy of HYUNDAI MOTOR AMERICA

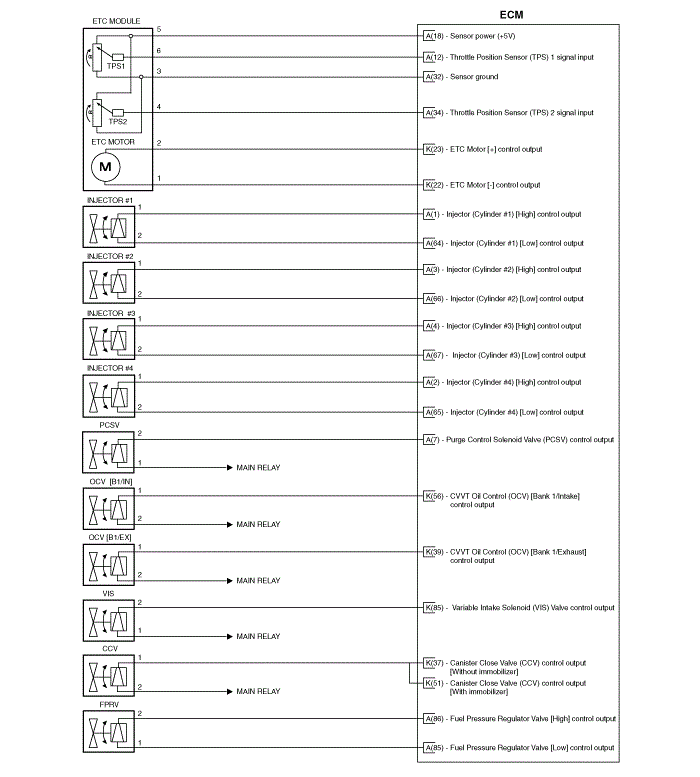

Fig 4: Engine Control Module Circuit Diagram (4 Of 4)
G00556639Courtesy of HYUNDAI MOTOR AMERICA
