Signal Waveform

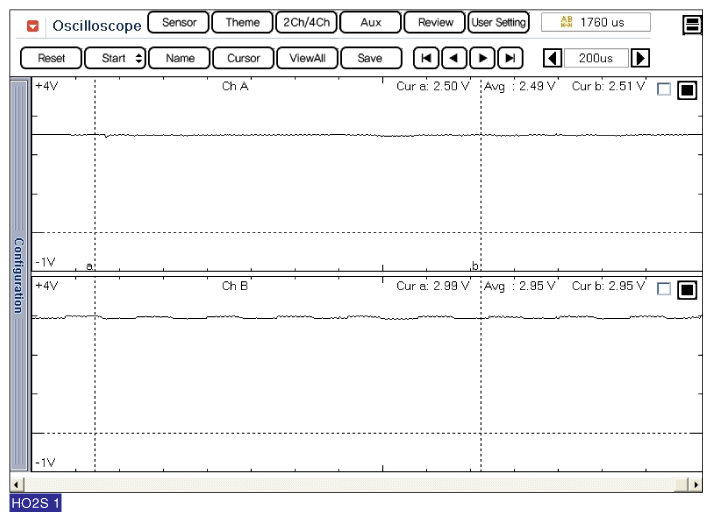

Fig 1: Heated Oxygen Sensor (B1/S1) Signal Waveform
G10362439Courtesy of HYUNDAI MOTOR AMERICA

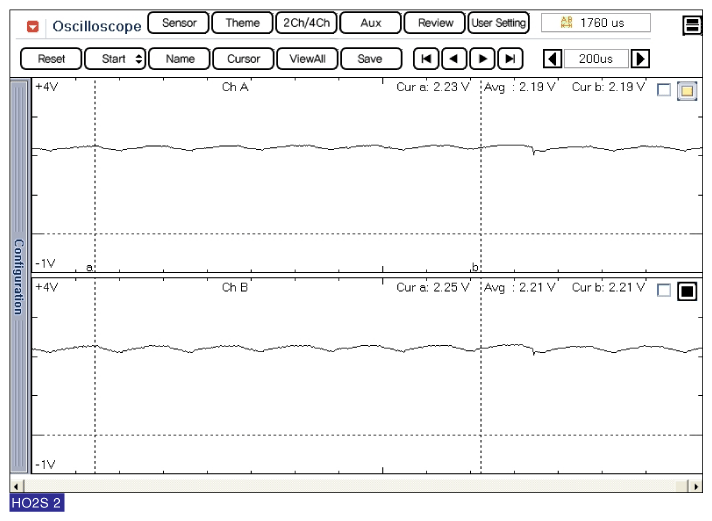

Fig 2: Heated Oxygen Sensor (B1/S2) Signal Waveform (1 Of 2)
G10362440Courtesy of HYUNDAI MOTOR AMERICA

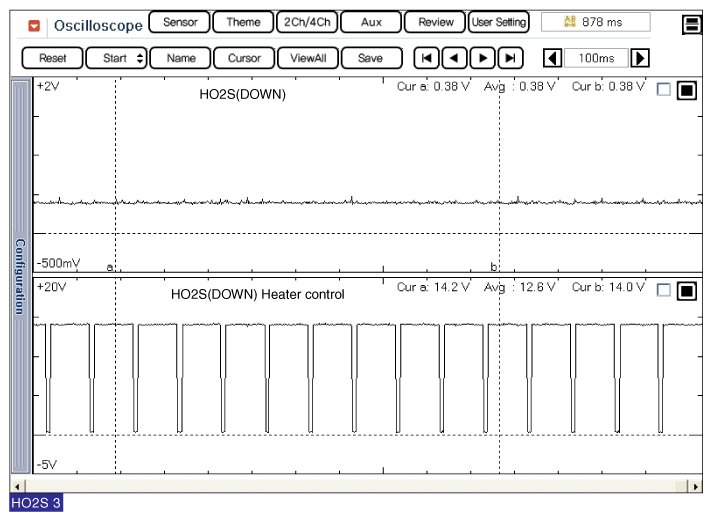

Fig 3: Heated Oxygen Sensor (B1/S2) Signal Waveform (2 Of 2)
G10362441Courtesy of HYUNDAI MOTOR AMERICA
