Circuit Diagram: (A/T)

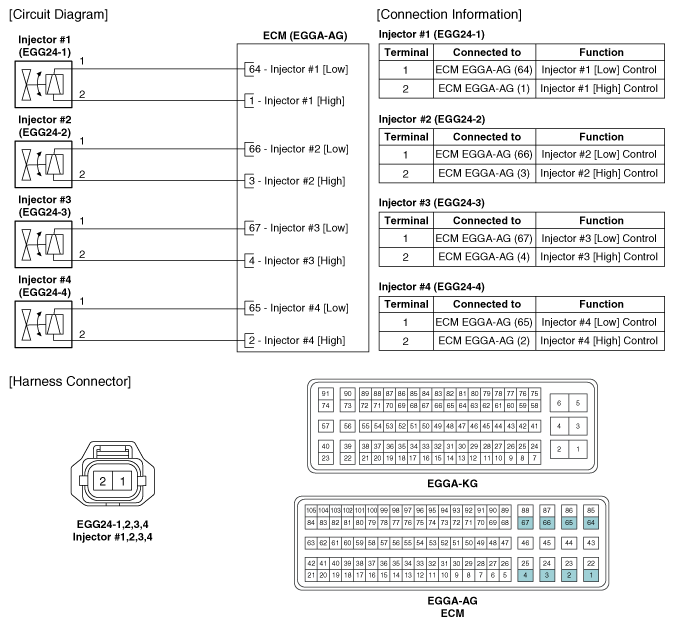

Fig 1: Injector Schematic Diagrams And Connector Terminal identification
G10362468Courtesy of HYUNDAI MOTOR AMERICA
