Circuit Diagram

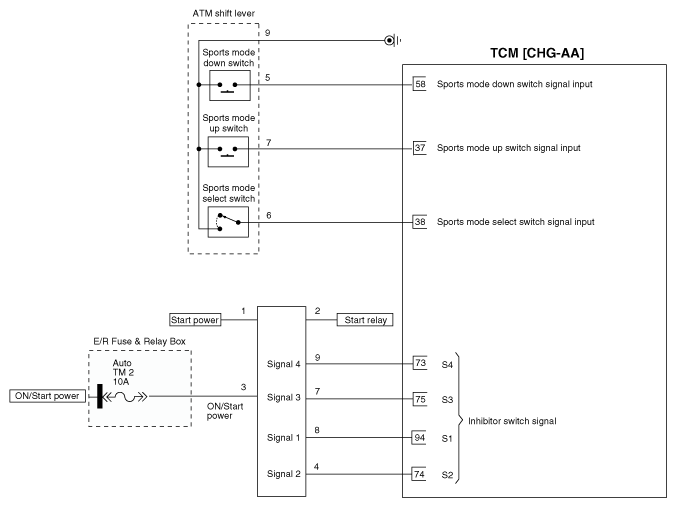

Fig 1: Transaxle Control Module (TCM) Circuit Diagram (1 Of 2)
G10362679Courtesy of HYUNDAI MOTOR AMERICA

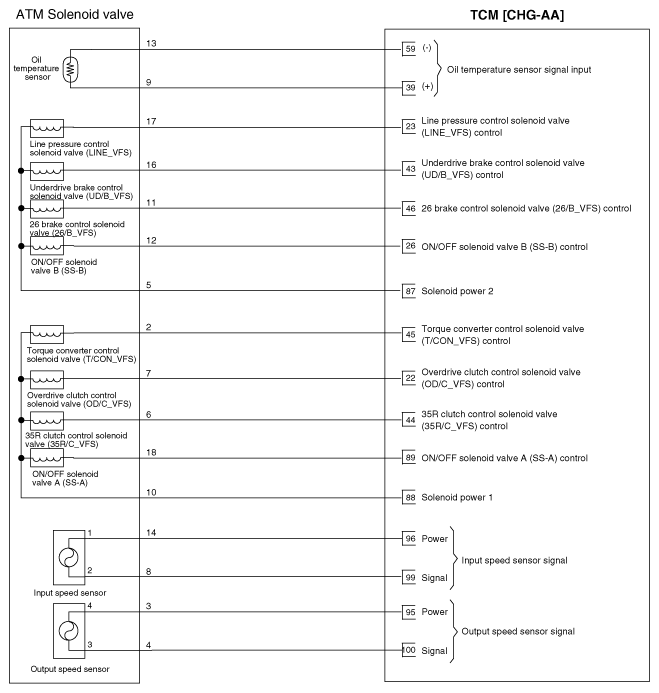

Fig 2: Transaxle Control Module (TCM) Circuit Diagram (2 Of 2)
G10362680Courtesy of HYUNDAI MOTOR AMERICA
