Components Location

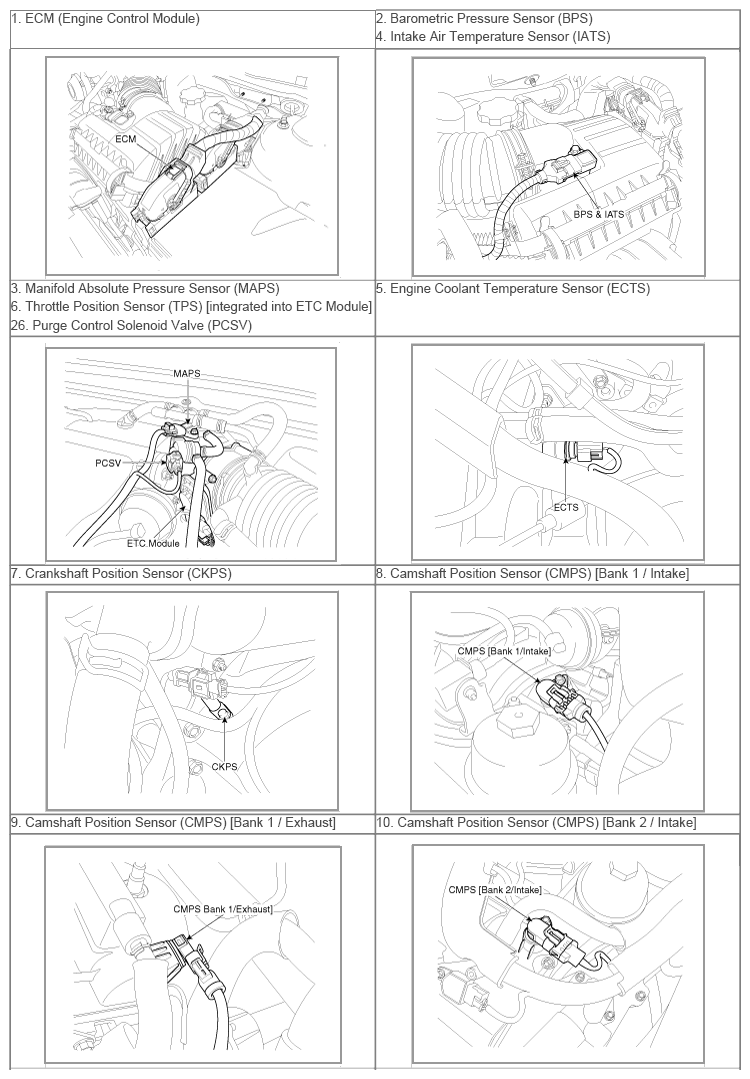

Fig 1: Engine Compartment Components Location (1 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

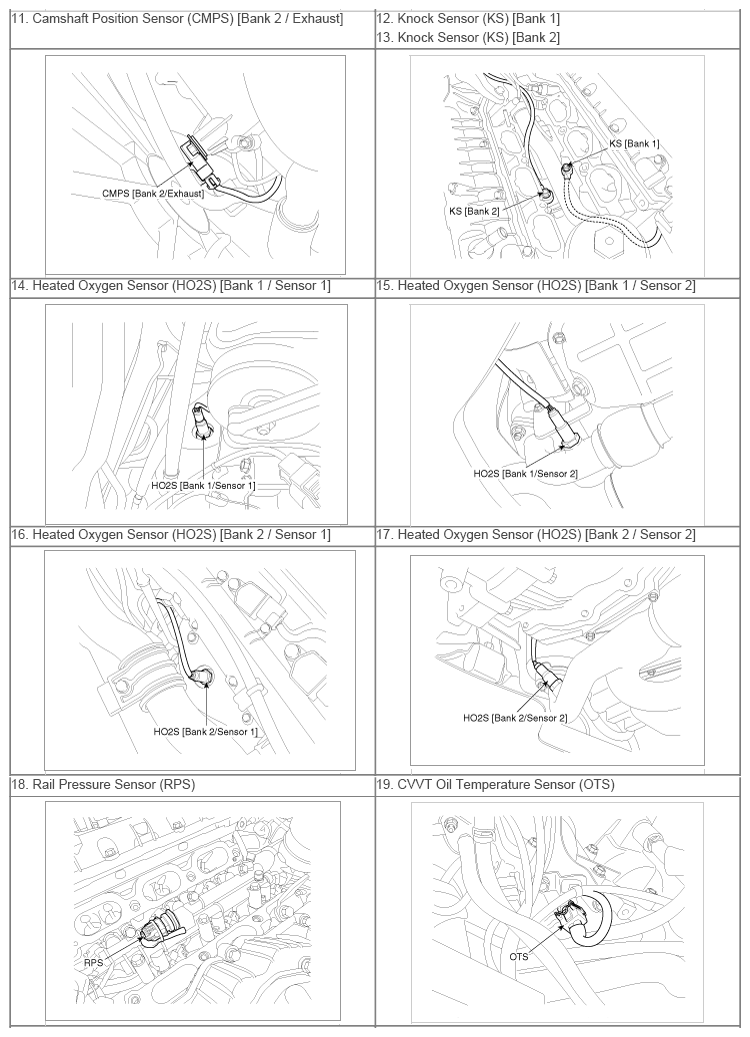

Fig 2: Engine Compartment Components Location (2 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

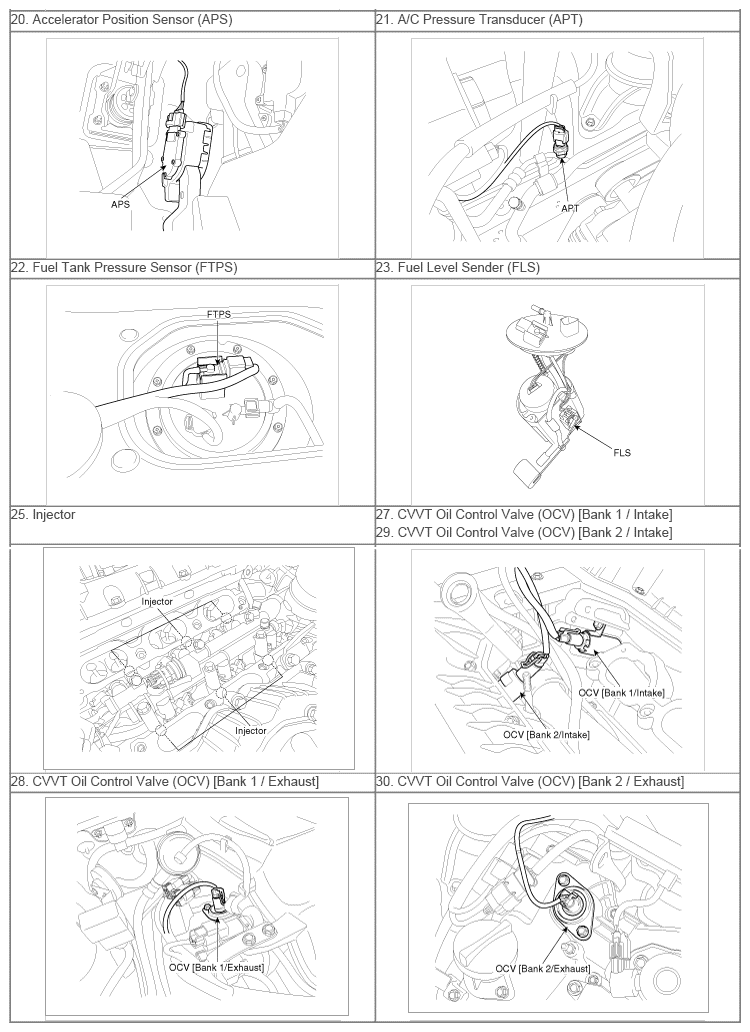

Fig 3: Engine Compartment Components Location (3 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

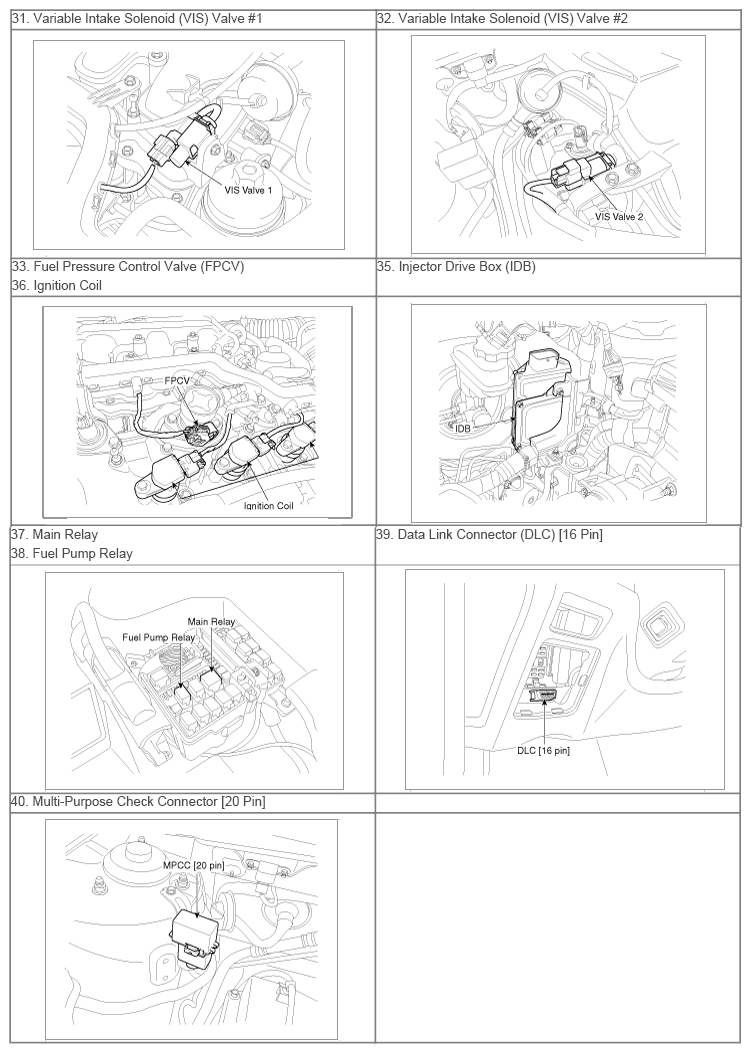

Fig 4: Engine Compartment Components Location (4 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

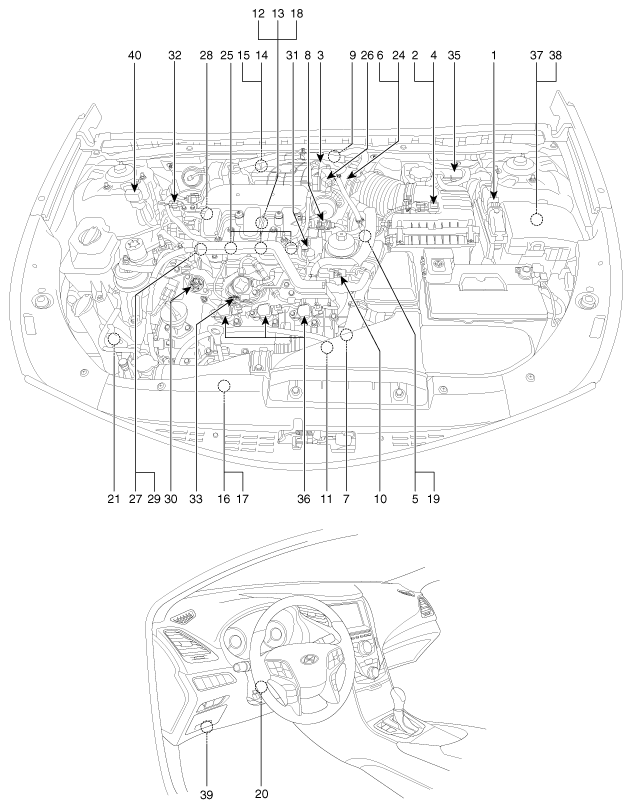

Fig 5: Engine Compartment Components Location (5 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA

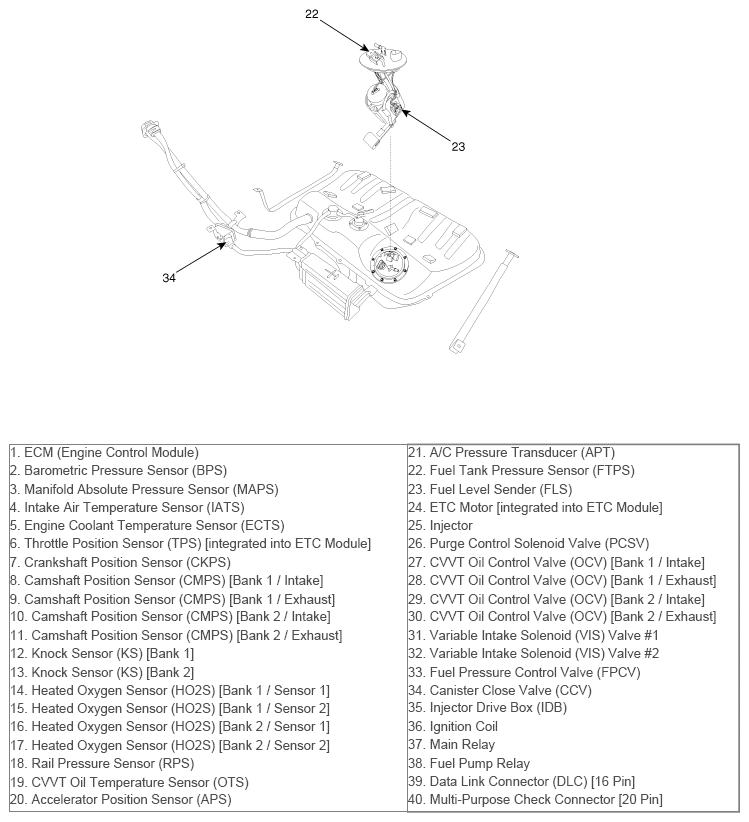

Fig 6: Engine Compartment Components Location (6 Of 7)

Courtesy of HYUNDAI MOTOR AMERICA
