Engine Electrical System - General Information: Specification: Specification

IGNITION SYSTEM SPECIFICATION

Items		Specification
Ignition coil	Primary resistance	0.75Ω ± 15 %
	Secondary resistance	5.9kΩ ± 15 %
Spark plugs	Type	SILZKR7B11
	Gap	1.0 ~ 1.1mm (0.0394 ~ 0.0433in.)

STARTING SYSTEM SPECIFICATION

Items			Specification
Starter	Rated voltage		12 V, 1.7 kW
	No. of pinion teeth		10
	No-load characteristics	Voltage	11.5 V
		Ampere	85A, MAX
		Speed	2, 550 rpm, MIN

CHARGING SYSTEM SPECIFICATION

Items			Specification
Alternator	Rate voltage		13.5 V, 150A
	Speed in use		1, 500 ~ 18, 000 rpm
	Voltage regulator		IC regulator built-in type
	Regulator setting voltage	External mode	ECU control
		Internal mode	14.0~15.0V
	Temperature compensation	External mode	ECU control
		Internal mode	-4 ± 4 mV/°C
Battery		Type	64 - 27 GL
		Cold cranking amperage [at -18°C (-0.4°F)]	660 A
		Reserve capacity	145 min
		Specific gravity [at 25°C (77°F)]	1.280 ± 0.01

CAUTION:

• COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
• RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).

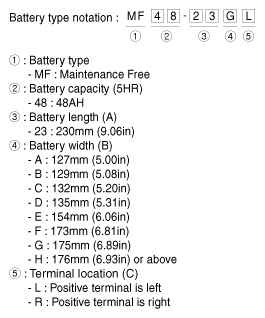

Fig 1: Battery Description Chart

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Battery Dimension Specification

Courtesy of HYUNDAI MOTOR AMERICA

SMART CRUISE CONTROL SYSTEM SPECIFICATION

Items		Specification
Operation speed range		0 ~ 180 km/h (0 ~ 111.8 mph) [0 ~ 30 km/h (0 ~ 18 mph), If there is ahead car]
Sensing angle	Horizontal angle	long distance: 20 ± 1° short distance: 80 ± 5°
	Vertical angle	4.5°
Sensing distance		long distance: 1 ~ 174m (3 ~ 570ft) short distance: 1 ~ 50m (3 ~ 164ft)
