Components and Components Location: Component

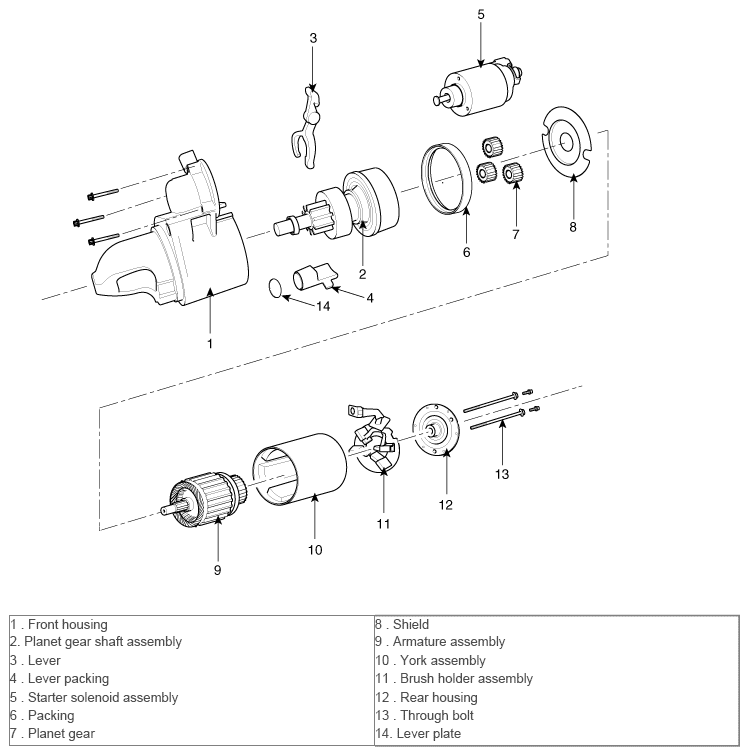

Fig 1: Starter Components
G10367247Courtesy of HYUNDAI MOTOR AMERICA
