Signal Waveform

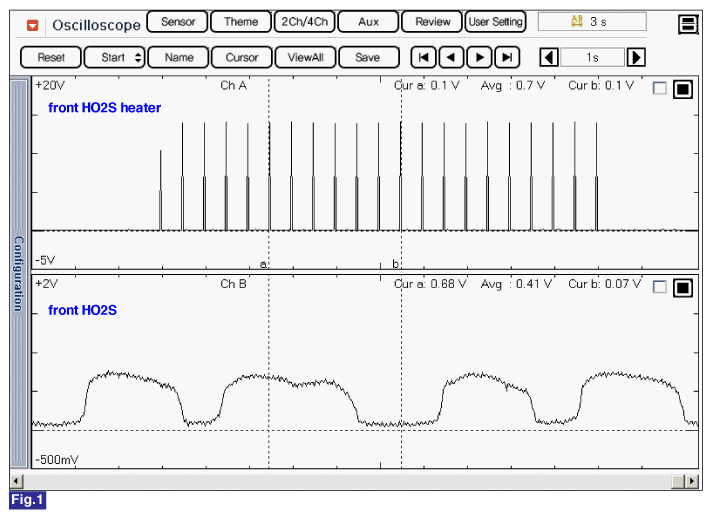

Fig 1: Screen Display - Signal Waveforms Of Front HO2S (Upper) And Heater (Lower) At Idle
G10465265Courtesy of HYUNDAI MOTOR AMERICA

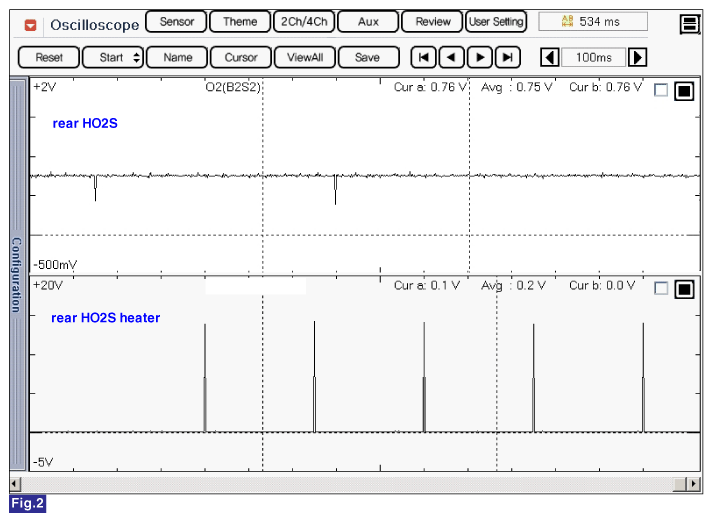

Fig 2: Screen Display - Signal Waveforms Of Rear HO2S (Upper) And Heater (Lower) At Idle
G10465266Courtesy of HYUNDAI MOTOR AMERICA

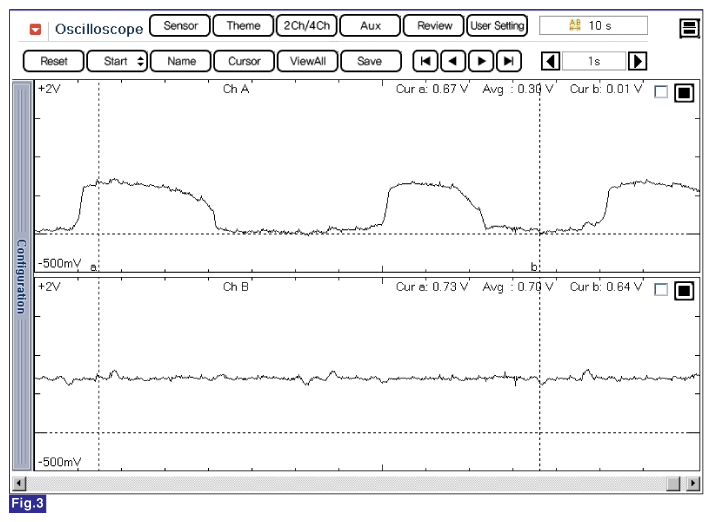

Fig 3: Screen Display - Typical Waveforms Of Front HO2S (Upper) And Rear HO2S (Lower)
G10465267Courtesy of HYUNDAI MOTOR AMERICA
