Rear Power Window Switch

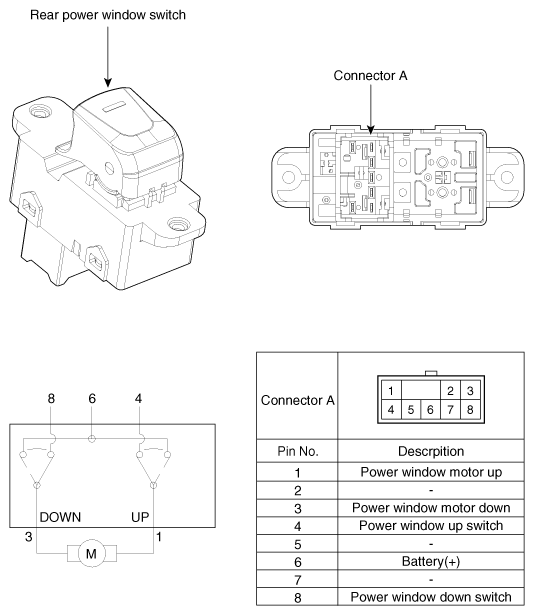

Fig 1: Rear Power Window Switch With Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
