Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform: [ISG]

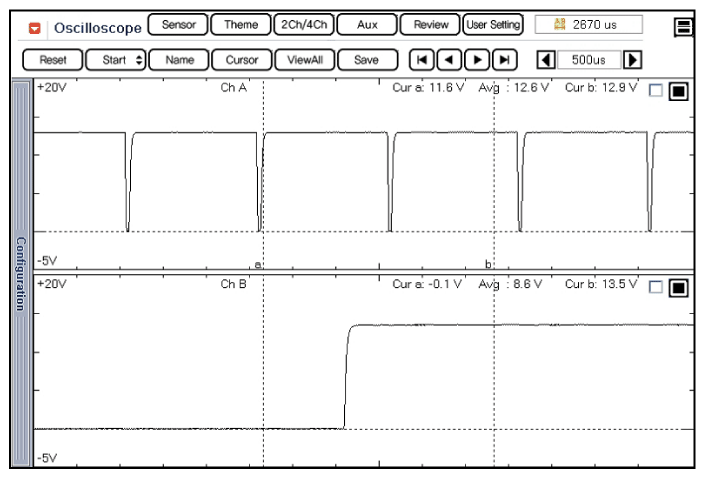

Fig 1: CMPS And CKPS Waveform (ISG) - Screen Display

Courtesy of HYUNDAI MOTOR AMERICA

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) Waveform at idle.
