Hyundai
>>
2015
>>
Veloster RE:FLEX
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
Button Engine Start System
>>
Schematic Diagrams
>>
Circuit Diagram (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (1)

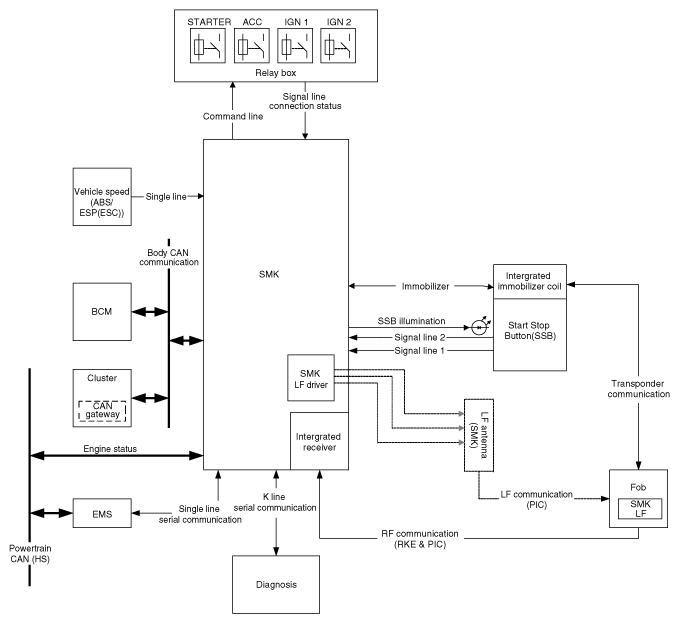

Fig 1: Button Engine Start System Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
