Camshaft Position Sensor (CMPS): Troubleshooting: WaveForm

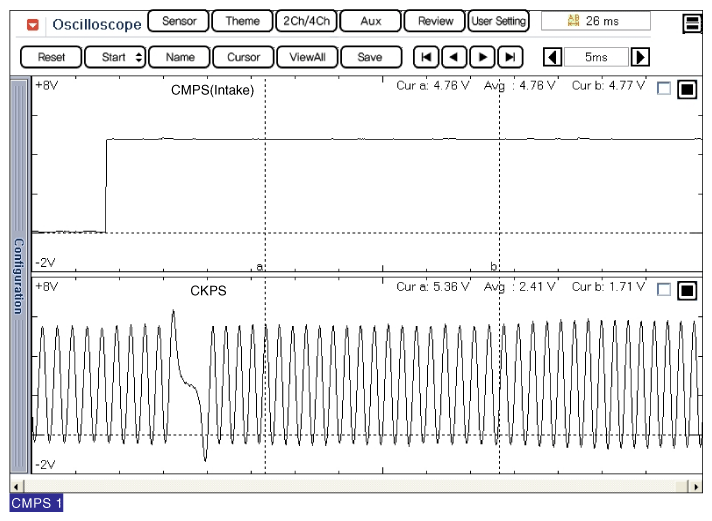

Fig 1: Signal Waveform Of Crankshaft Position Sensor And Camshaft Position Sensor (Intake) - Screen Display
G10604559Courtesy of HYUNDAI MOTOR AMERICA

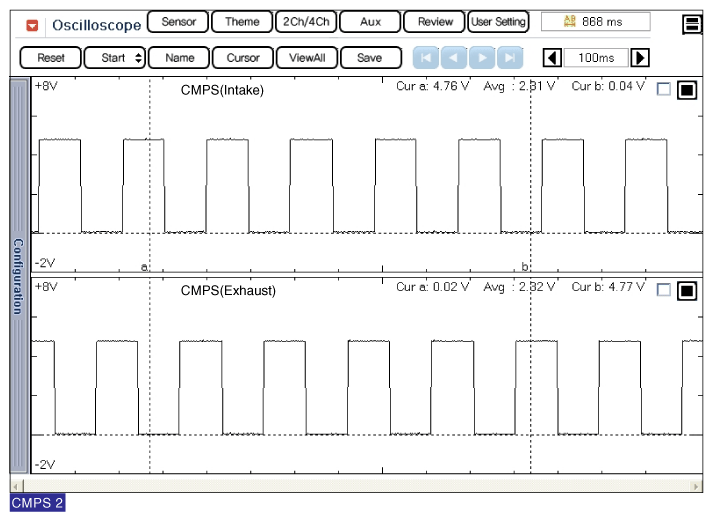

Fig 2: Signal Waveform Of Crankshaft Position Sensor (Exhaust) And Camshaft Position Sensor (Intake) - Screen Display
G10604560Courtesy of HYUNDAI MOTOR AMERICA
