Circuit Diagram

(M/T)

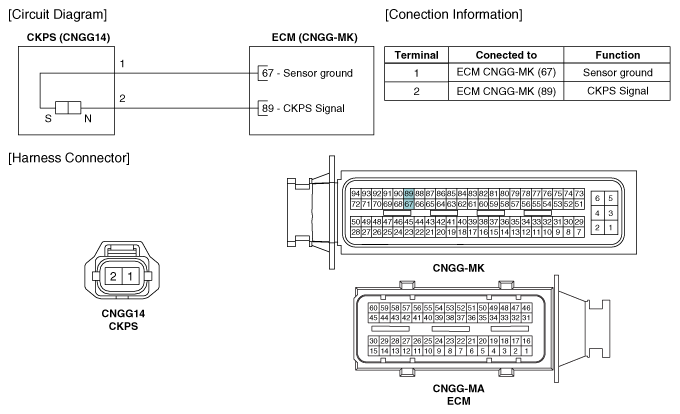

Fig 1: Crankshaft Position Sensor Circuit Diagram (M/T) With Connector End Views
G10604555Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

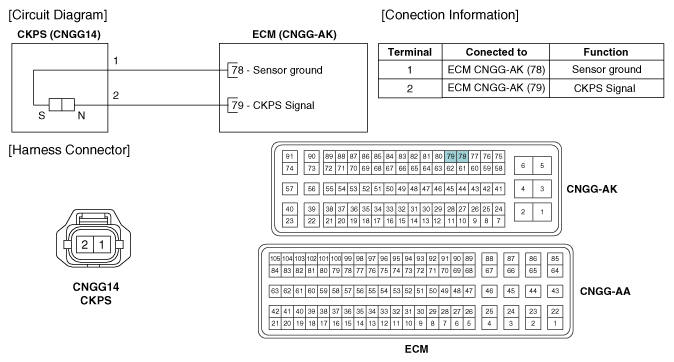

Fig 2: Crankshaft Position Sensor Circuit Diagram (A/T) With Connector End Views
G10604556Courtesy of HYUNDAI MOTOR AMERICA
