Circuit Diagram

(M/T)

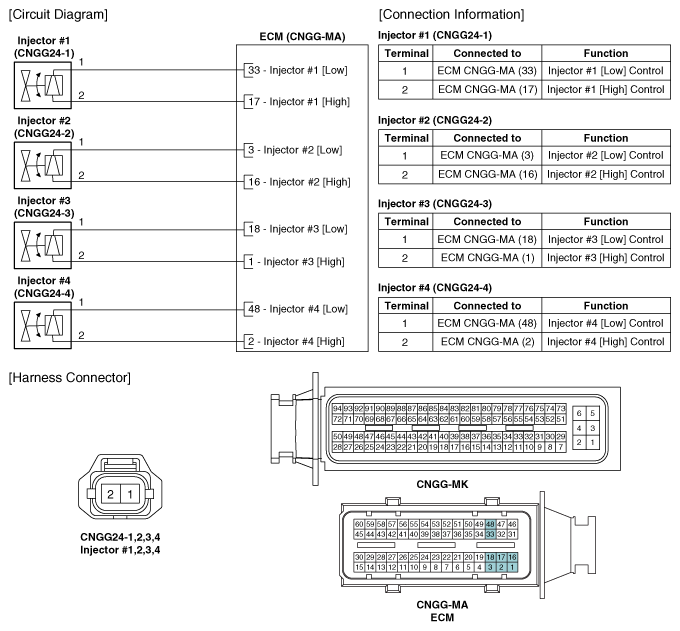

Fig 1: Injector Circuit Diagram (M/T) With Connector End Views
G10604591Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

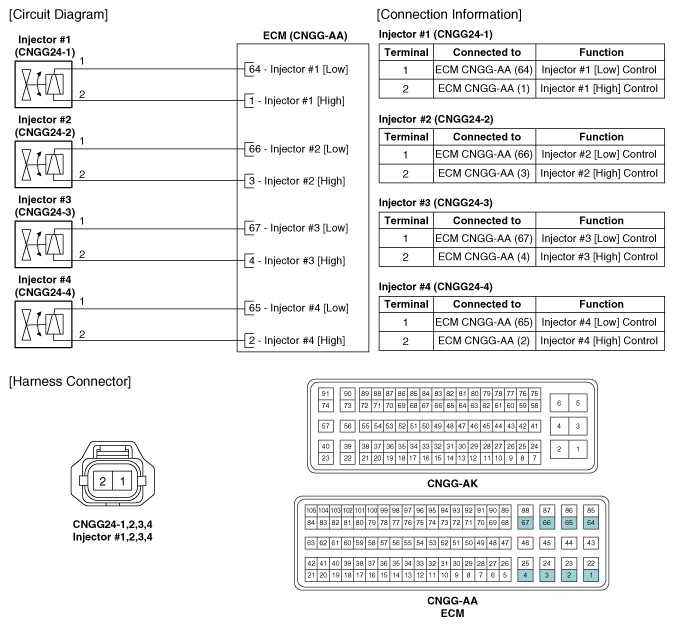

Fig 2: Injector Circuit Diagram (A/T) With Connector End Views
G10604592Courtesy of HYUNDAI MOTOR AMERICA
