Circuit Diagram

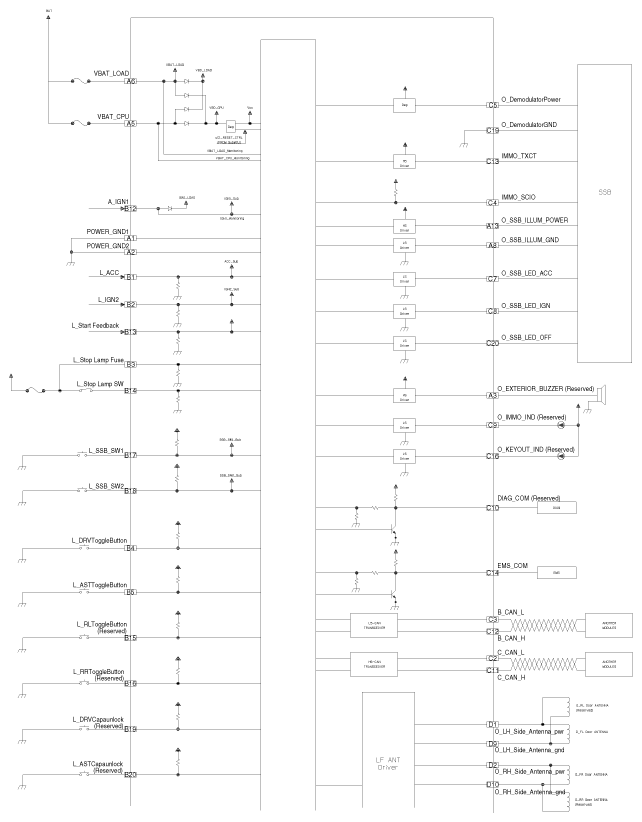

Fig 1: Smart Key Unit - Circuit Diagram (1 Of 2)
G10368835Courtesy of HYUNDAI MOTOR AMERICA

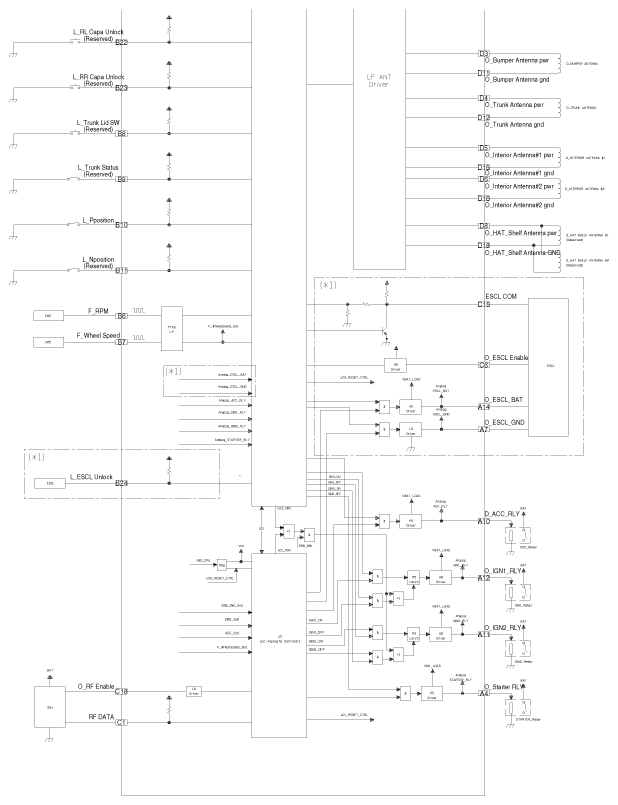

Fig 2: Smart Key Unit - Circuit Diagram (2 Of 2)
G10368836Courtesy of HYUNDAI MOTOR AMERICA
