Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

Fig 2: Selecting Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as in illustration below.

Fig 3: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

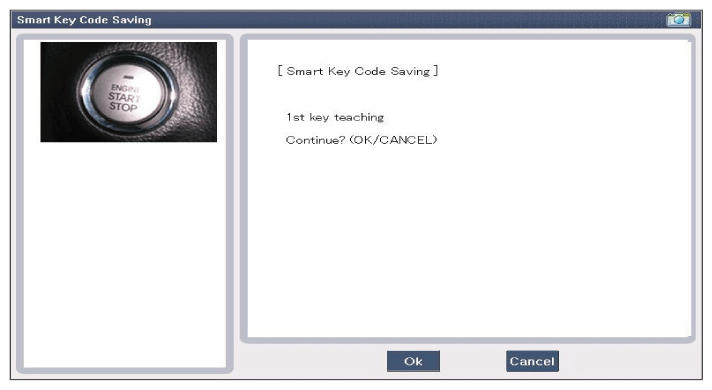

After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

Fig 4: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Display - Smart Key Code Saving Message Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

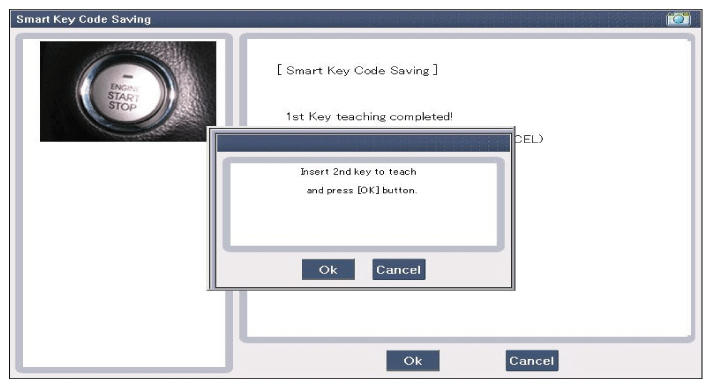

Confirm the message "First key teaching completed".

Fig 6: Display - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin code" for second key teaching.

Fig 8: Display - Second Key Teaching Pin Code Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Second Key Teaching Pin Code Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

Fig 10: Display - Second Key Teaching Completed Message Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as in illustration below when key teaching process is completed.
