Front Safety Window

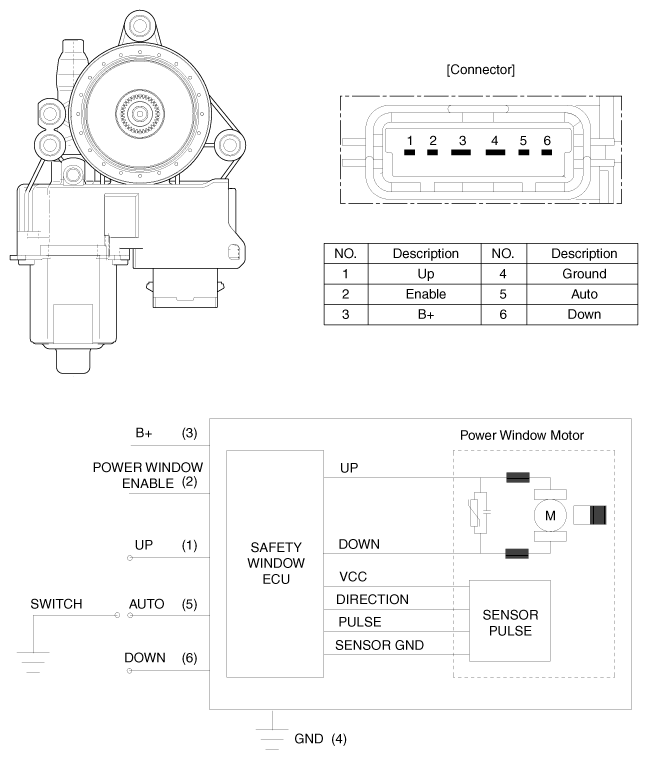

Fig 1: Power Window Motor Schematic Diagrams

G10369052

Courtesy of HYUNDAI MOTOR AMERICA
