Components and Components Location: Components

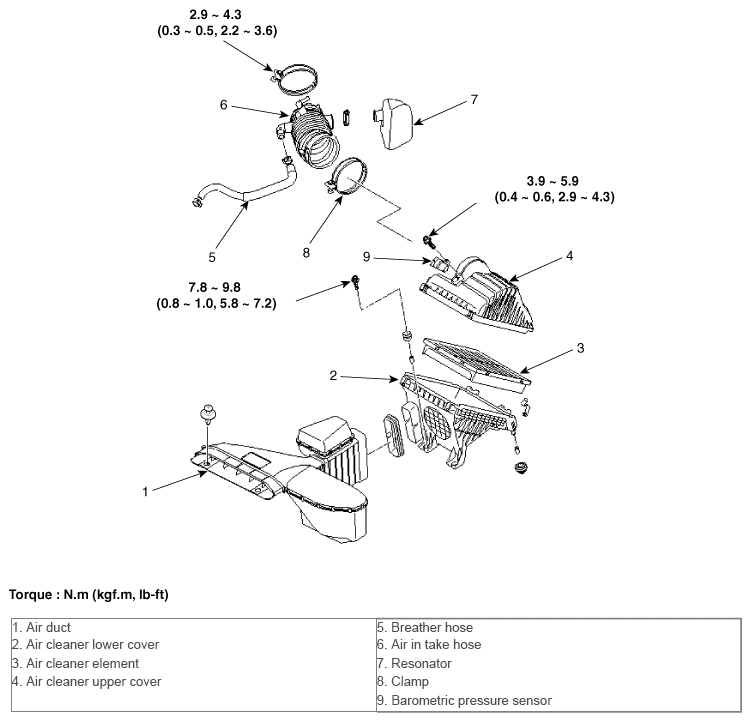

Fig 1: Air Cleaner Components With Torque Specifications
G10367144Courtesy of HYUNDAI MOTOR AMERICA
