Components and Components Location: Components

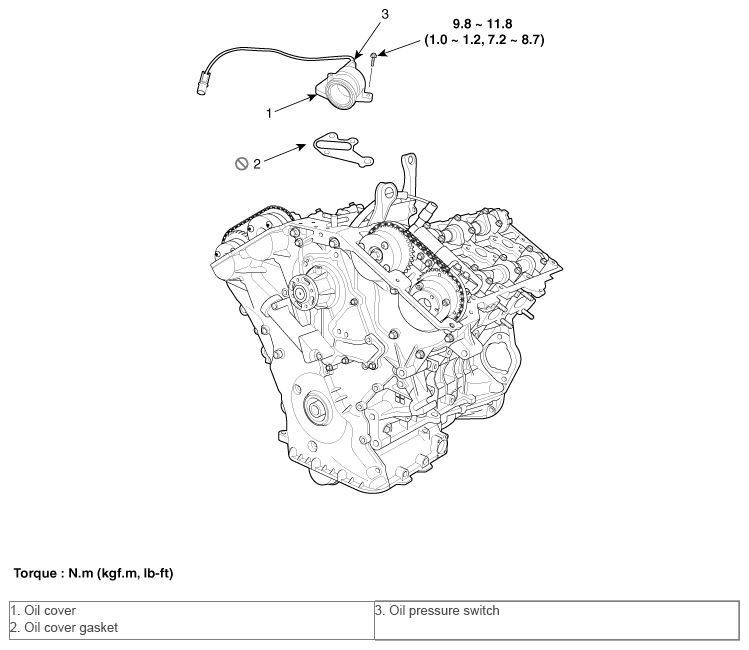

Fig 1: Oil Pressure Switch Components With Torque Specifications
G10367138Courtesy of HYUNDAI MOTOR AMERICA
