Components and Components Location: Components

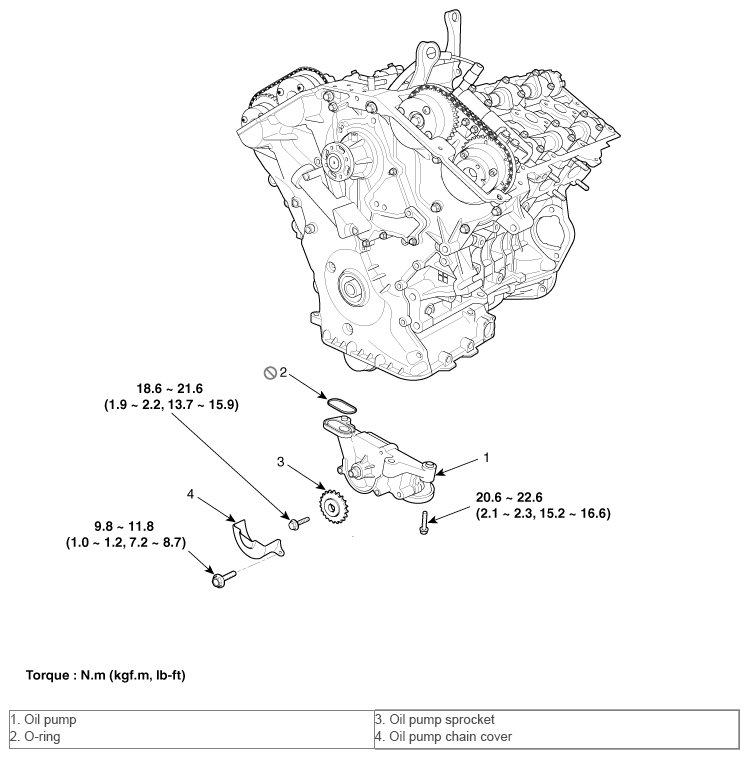

Fig 1: Oil Pump Components With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
