Circuit Diagram

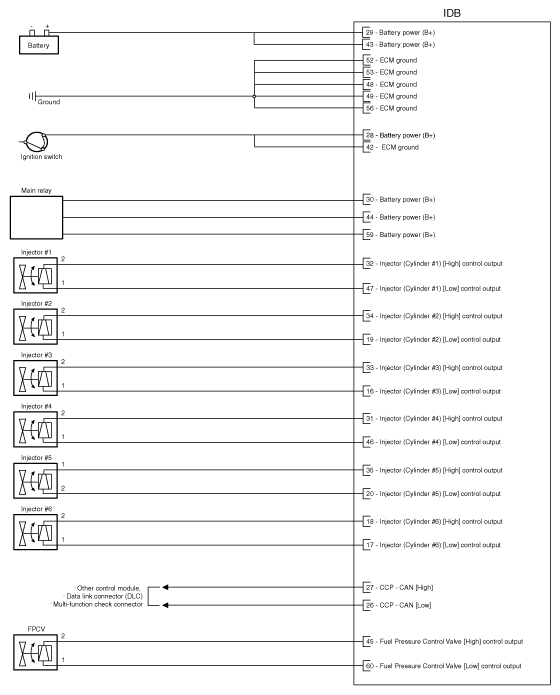

Fig 1: Injector Drive Box - Circuit Diagram (1 Of 2)
G10367405Courtesy of HYUNDAI MOTOR AMERICA

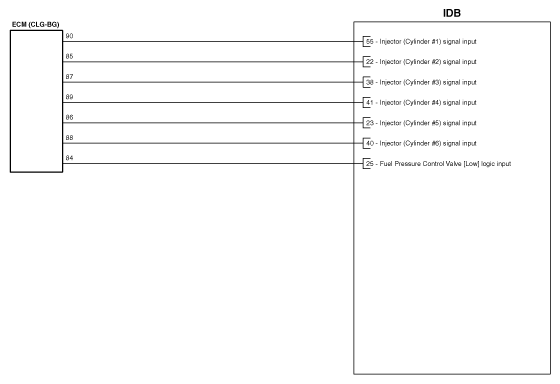

Fig 2: Injector Drive Box - Circuit Diagram (2 Of 2)
G10367406Courtesy of HYUNDAI MOTOR AMERICA
