IDB terminal and In/Output

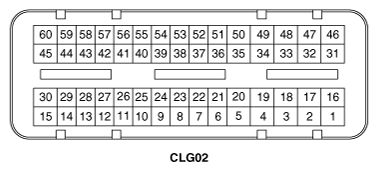

Fig 1: Injector Drive Box Terminals
G10367404Courtesy of HYUNDAI MOTOR AMERICA

IDB terminal function

CONNECTOR PIN REFERENCE (CLG02)

Pin No. Description Connected to
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 -
16 Injector (Cylinder #3) [Low] control output Injector (Cylinder #3)
17 Injector (Cylinder #6) [Low] control output Injector (Cylinder #6)
18 Injector (Cylinder #6) [High] control output Injector (Cylinder #6)
19 Injector (Cylinder #2) [Low] control output Injector (Cylinder #2)
20 Injector (Cylinder #5) [Low] control output Injector (Cylinder #5)
21 -
22 Injector (Cylinder #2) signal input Engine Control Module (ECM)
23 Injector (Cylinder #5) signal input Engine Control Module (ECM)
24 -
25 Fuel Pressure Control Valve (FPRV) logic input Engine Control Module (ECM)
26 CCP-CAN [Low] Other control module, Data Link Connector (DLC), Multipurpose check connector
27 CCP-CAN [High] Other control module, Data Link Connector (DLC), Multipurpose check connector
28 Battery power (B+) Ignition switch
29 Battery power (B+) Main relay
30 Battery power (B+) Main relay
31 Injector (Cylinder #4) [High] control output Injector (Cylinder #4)
32 Injector (Cylinder #1) [High] control output Injector (Cylinder #1)
33 Injector (Cylinder #3) [High] control output Injector (Cylinder #3)
34 Injector (Cylinder #2) [High] control output Injector (Cylinder #2)
35 Injector (Cylinder #5) [High] control output Injector (Cylinder #5)
36 -
37 -
38 Injector (Cylinder #3) signal input Engine Control Module (ECM)
39 -
40 Injector (Cylinder #6) signal input Engine Control Module (ECM)
41 Injector (Cylinder #4) signal input Engine Control Module (ECM)
42 Battery power (B+) Ignition switch
43 Battery power (B+) Main relay
44 Battery power (B+) Main relay
45 Fuel Pressure Control Valve (FPRV) [High] control output Fuel Pressure Control Valve (FPRV)
46 Injector (Cylinder #4) [Low] control output Injector (Cylinder #4)
47 Injector (Cylinder #1) [Low] control output Injector (Cylinder #1)
48 ECM ground Chassis ground
49 ECM ground Chassis ground
50 ECM ground Chassis ground
51 -
52 ECM ground Chassis ground
53 ECM ground Chassis ground
54 -
55 Injector (Cylinder #1) signal input Engine Control Module (ECM)
56 -
57 -
58 -
59 Battery power (B+) Main relay
60 Fuel Pressure Control Valve (FPRV) [Low] control output Fuel Pressure Control Valve (FPRV)

IDB Terminal input/output signal

CONNECTOR PIN REFERENCE (CLG02)

Pin No. Description Condition Type Level
1 -
2 -
3 -
4 -
5 -
6 -
7 -
8 -
9 -
10 -
11 -
12 -
13 -
14 -
15 -
16 Injector (Cylinder #3) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
17 Injector (Cylinder #6) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
18 Injector (Cylinder #6) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
19 Injector (Cylinder #2) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
20 Injector (Cylinder #5) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
21 -
22 Injector (Cylinder #2) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
23 Injector (Cylinder #5) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
24 -
25 Fuel Pressure Control Valve (FPRV) logic input
26 CCP-CAN [Low] Recessive Pulse 2.0 ~ 3.0V
Dominant 2.75 ~ 4.5V
27 CCP-CAN [High] Recessive Pulse 2.0 ~ 3.0V
Dominant 2.75 ~ 4.5V
28 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
29 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
30 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
31 Injector (Cylinder #4) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
32 Injector (Cylinder #1) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
33 Injector (Cylinder #3) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
34 Injector (Cylinder #2) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
35 Injector (Cylinder #5) [High] control output Idle Pulse High: Battery voltage ~ 80V
Relay ON Low: Battery voltage
36 -
37 -
38 Injector (Cylinder #3) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
39 -
40 Injector (Cylinder #6) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
41 Injector (Cylinder #4) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
42 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
43 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
44 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
45 Fuel Pressure Control Valve (FPRV) [High] control output Idle DC voltage Battery voltage
Max. 1.0V
46 Injector (Cylinder #4) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
47 Injector (Cylinder #1) [Low] control output Idle Pulse High: Battery voltage
Relay ON Low: Max. 1.0V
48 ECM ground Idle DC voltage Max. 50mV
49 ECM ground Idle DC voltage Max. 50mV
50 ECM ground Idle DC voltage Max. 50mV
51 -
52 ECM ground Idle DC voltage Max. 50mV
53 ECM ground Idle DC voltage Max. 50mV
54 -
55 Injector (Cylinder #1) signal input Idle Pulse High: Battery voltage
Low: Max. 1.0V
56 -
57 -
58 -
59 Battery power (B+) IG OFF DC voltage Max. 0.5V
IG ON Battery voltage
60 Fuel Pressure Control Valve (FPRV) [Low] control output Idle DC voltage Battery voltage
Max. 1.0V
