Circuit Diagram

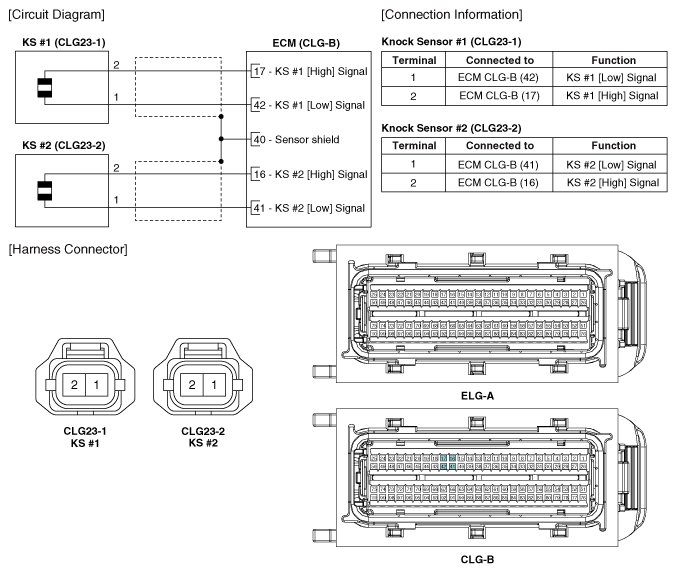

Fig 1: ECM Schematic Diagrams
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
