Circuit Diagram

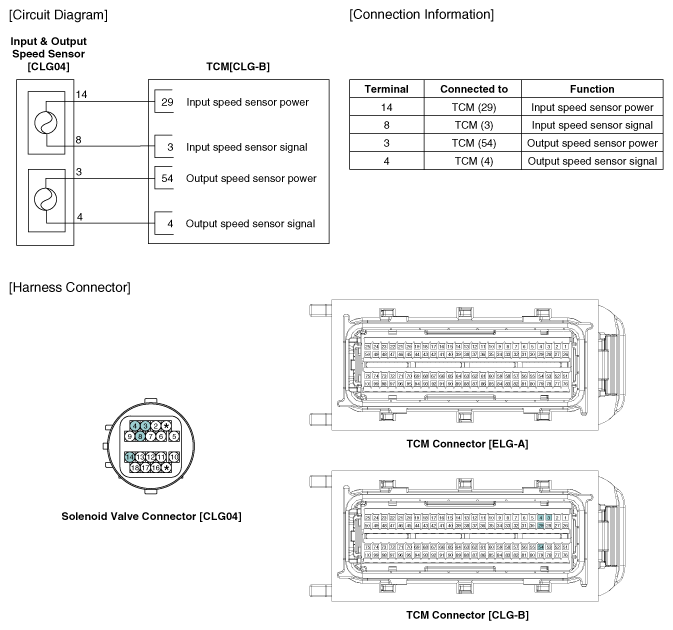

Fig 1: Input And Output Speed Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
