Circuit Diagram

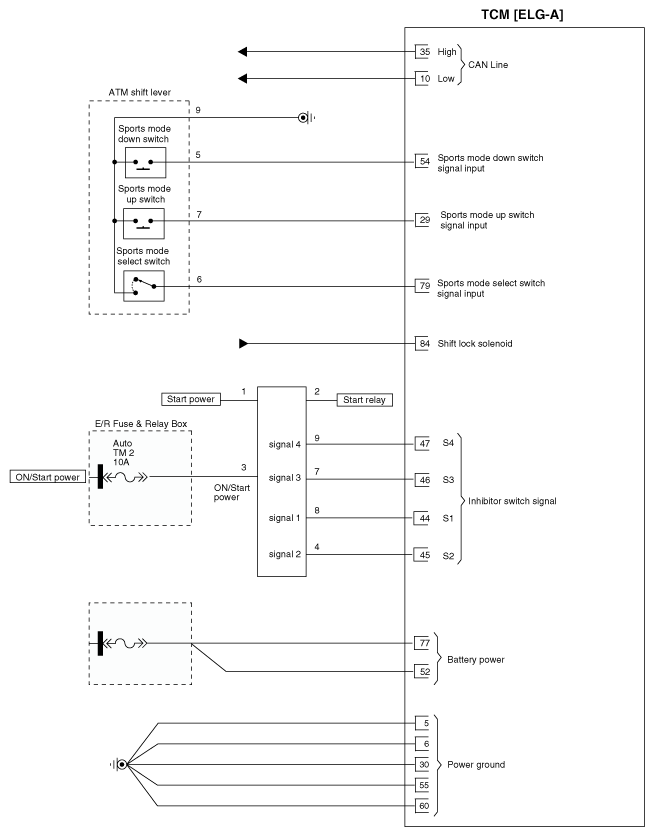

Fig 1: TCM - Circuit Diagram
G10367671Courtesy of HYUNDAI MOTOR AMERICA

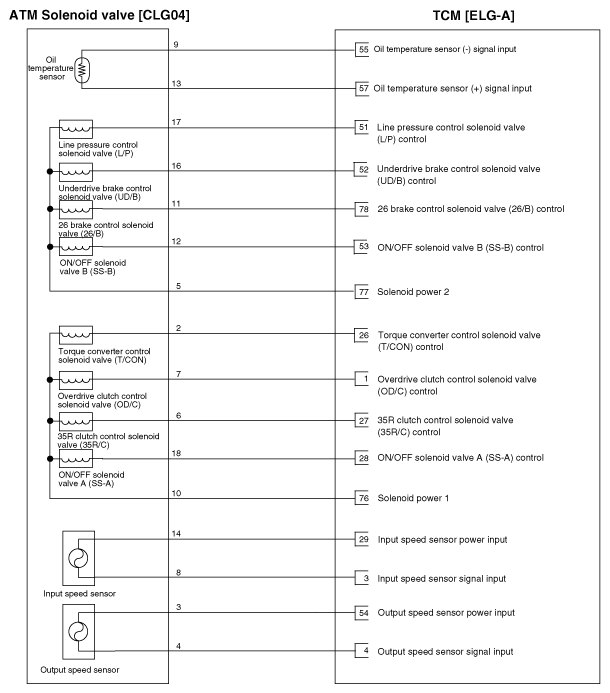

Fig 2: ATM Solenoid Valve - Circuit Diagram
G10367672Courtesy of HYUNDAI MOTOR AMERICA
