Components and Components Location: Components: Notes

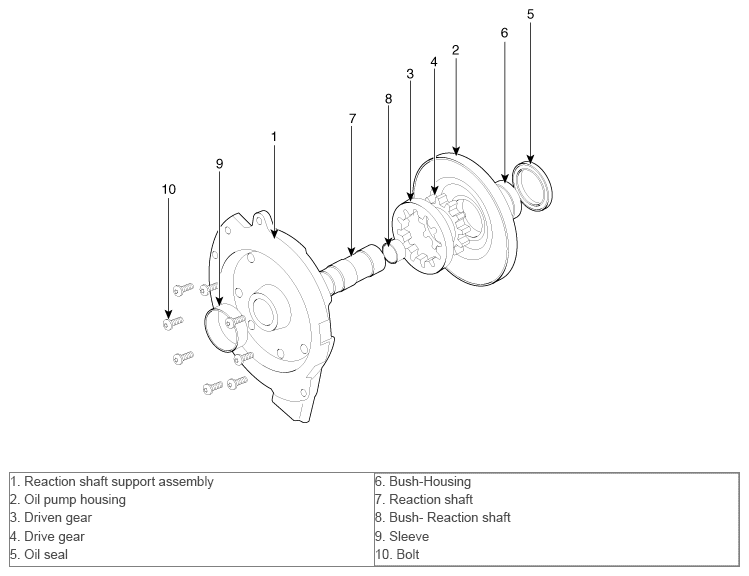

Fig 1: Oil Pump Component Locations

G10367641

Courtesy of HYUNDAI MOTOR AMERICA
