Inspection flow

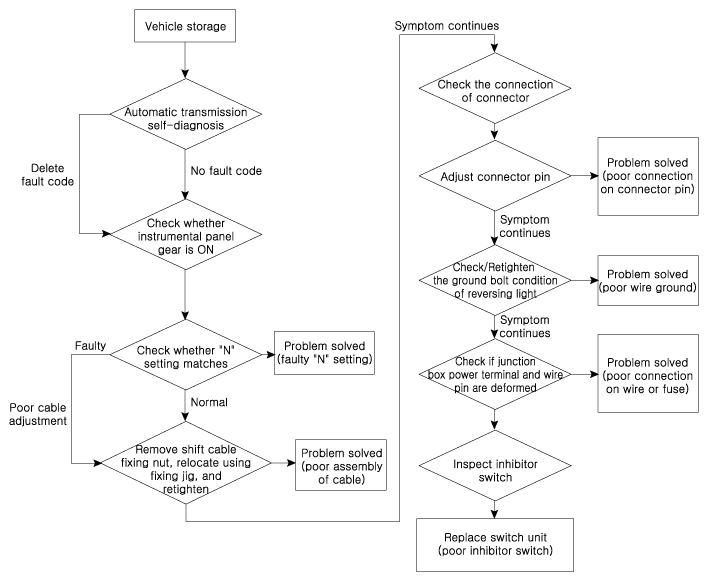

Fig 1: Vehicle Storage Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
