Components Location

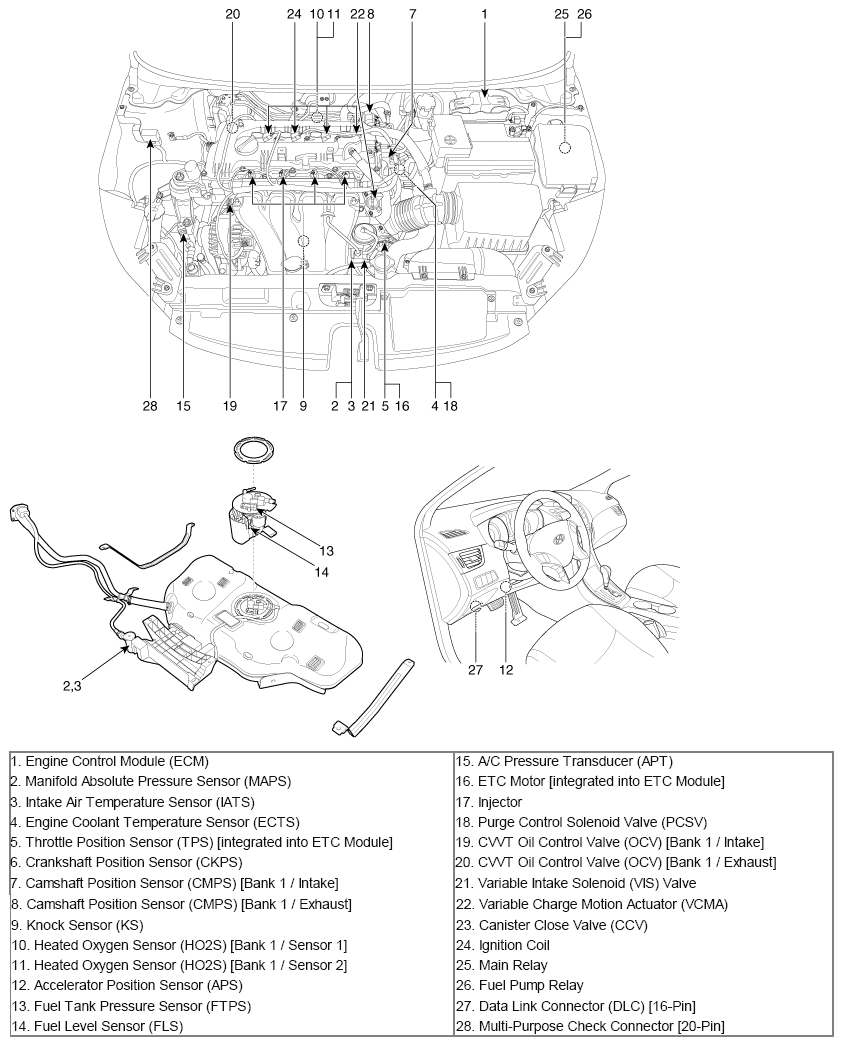

Fig 1: Engine Compartment Components Location (1 Of 4)
G10537629Courtesy of HYUNDAI MOTOR AMERICA

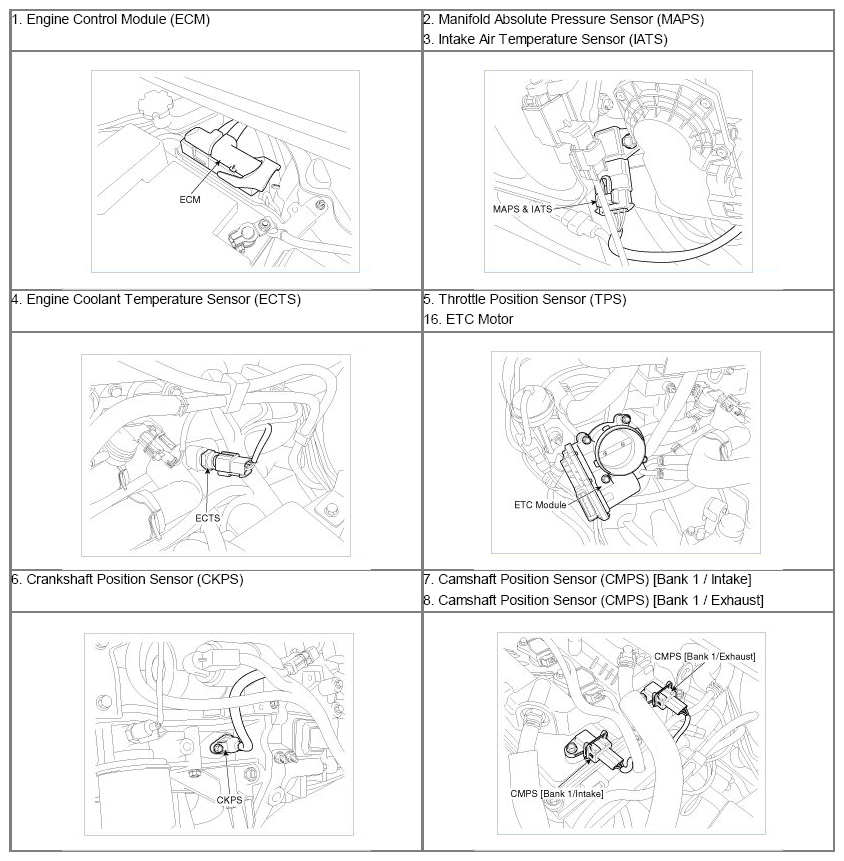

Fig 2: Engine Compartment Components Location (2 Of 4)
G10537630Courtesy of HYUNDAI MOTOR AMERICA

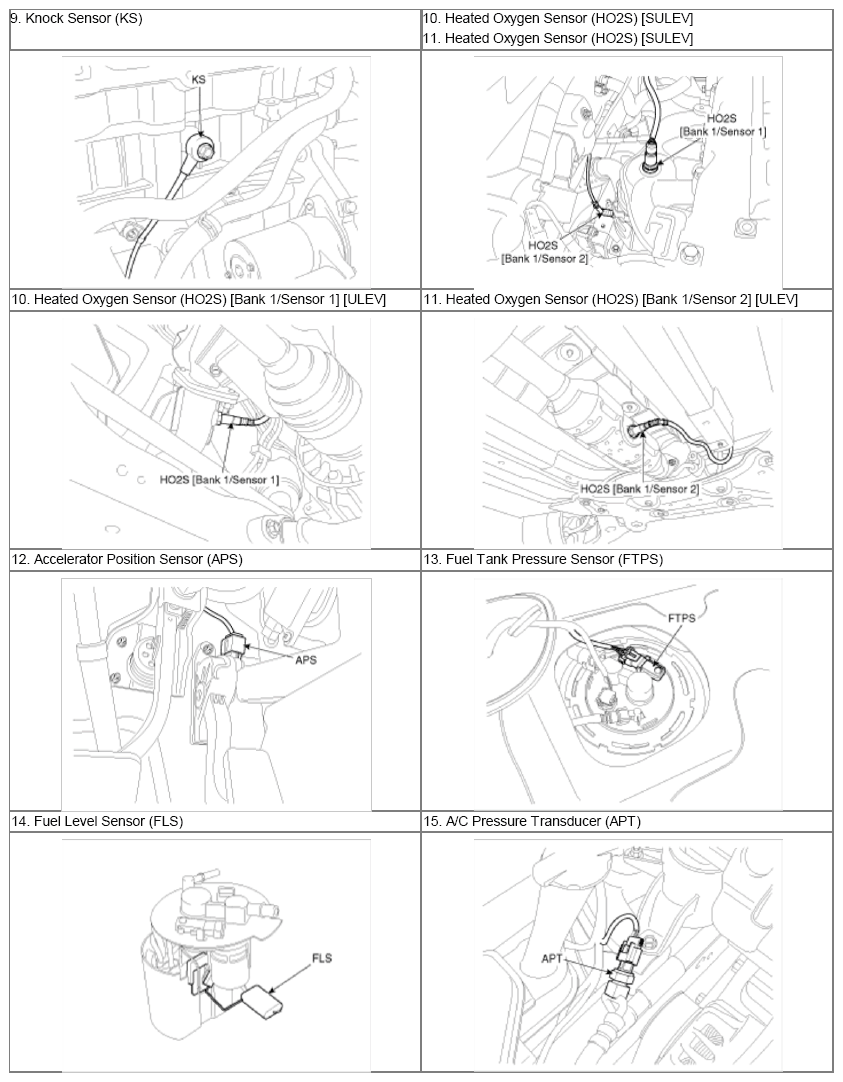

Fig 3: Engine Compartment Components Location (3 Of 4)
G10537631Courtesy of HYUNDAI MOTOR AMERICA

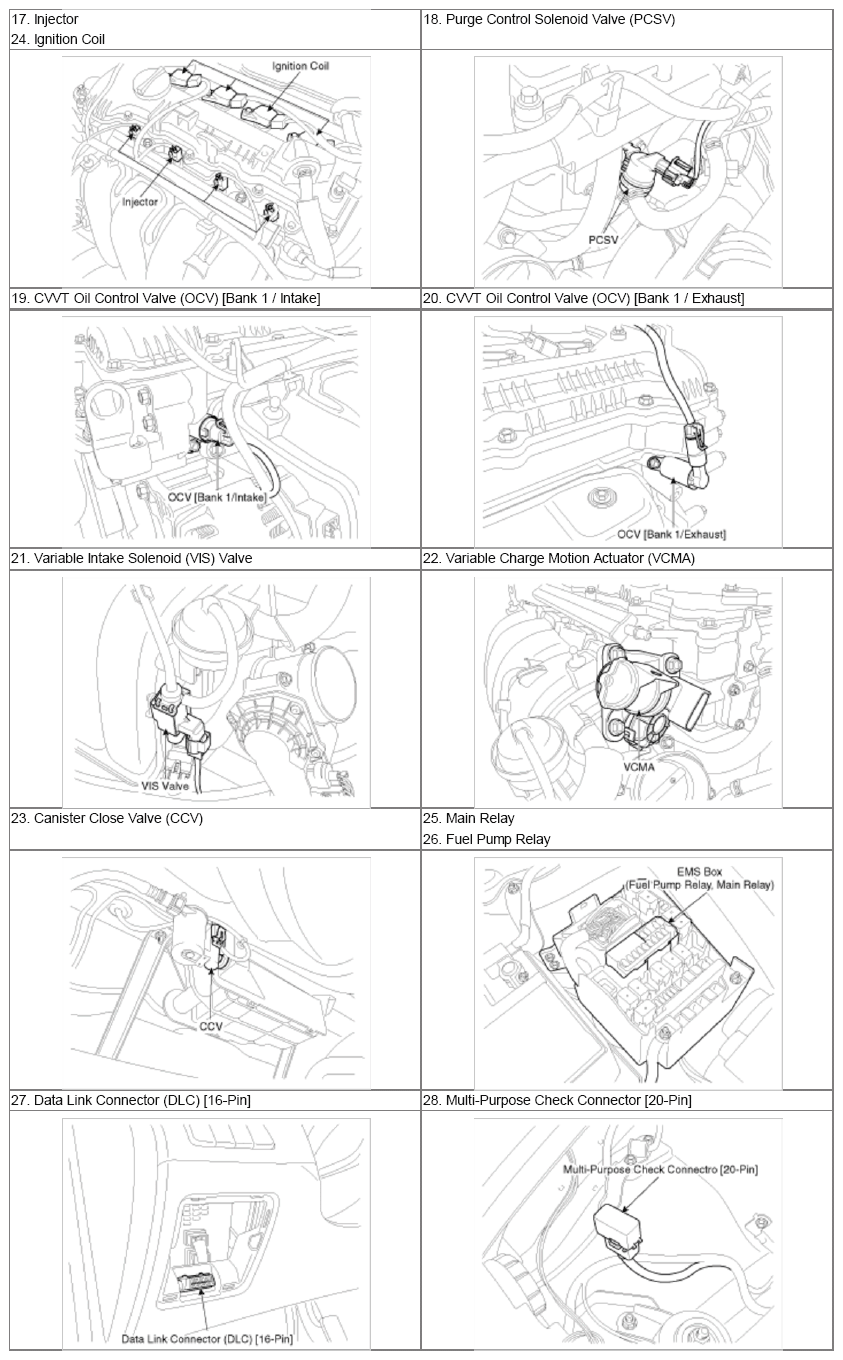

Fig 4: Engine Compartment Components Location (4 Of 4)
G10537632Courtesy of HYUNDAI MOTOR AMERICA
