Circuit Diagram: (A/T)

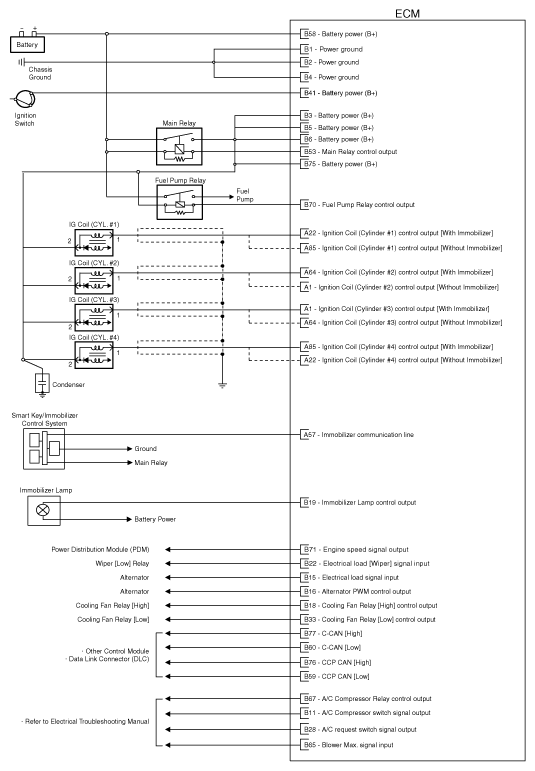

Fig 1: ECM - Circuit Diagram (A/T; 1 Of 4)
G10537639Courtesy of HYUNDAI MOTOR AMERICA

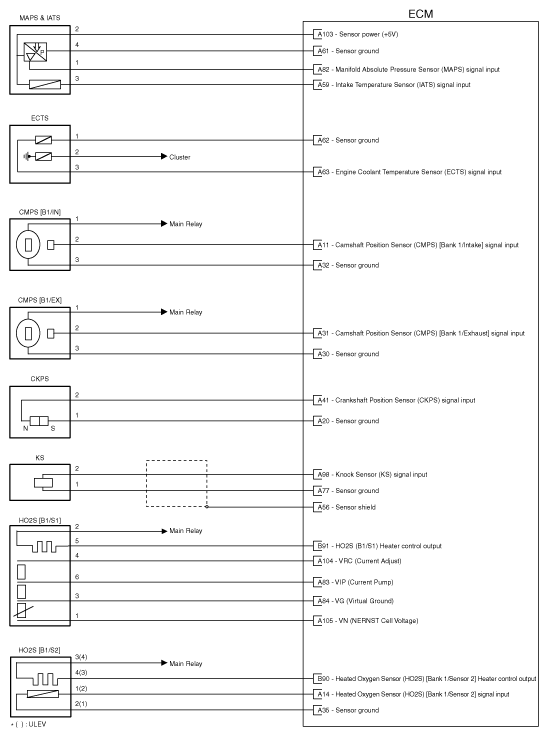

Fig 2: ECM - Circuit Diagram (A/T; 2 Of 4)
G10537640Courtesy of HYUNDAI MOTOR AMERICA

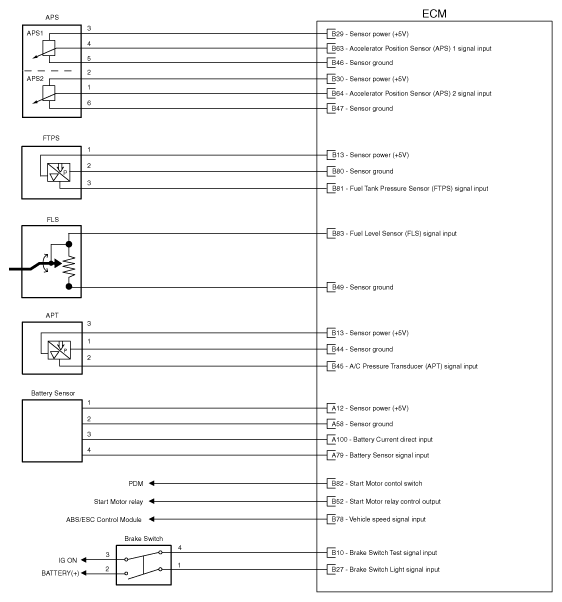

Fig 3: ECM - Circuit Diagram (A/T; 3 Of 4)
G10537641Courtesy of HYUNDAI MOTOR AMERICA

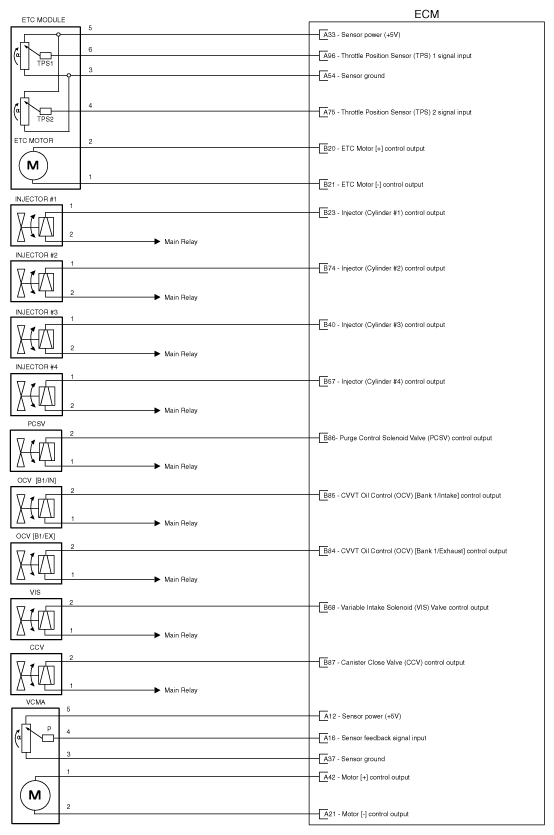

Fig 4: ECM - Circuit Diagram (A/T; 4 Of 4)
G10537642Courtesy of HYUNDAI MOTOR AMERICA
