Circuit Diagram: (M/T)

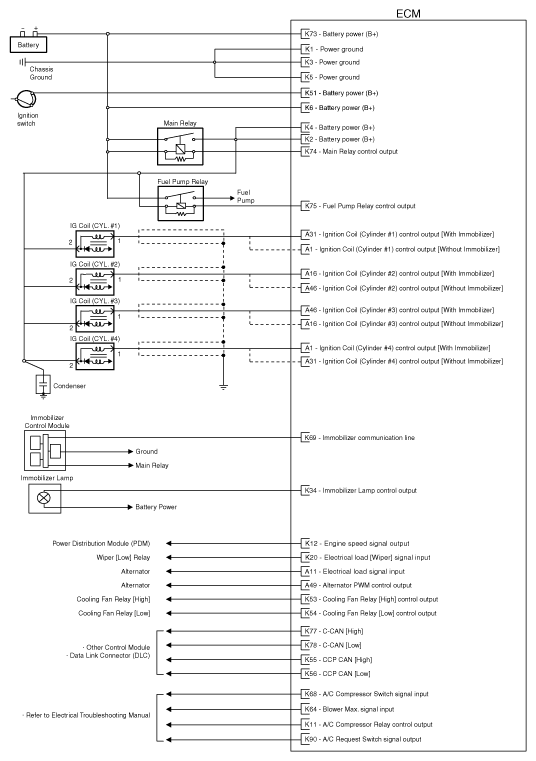

Fig 1: ECM - Circuit Diagram (M/T; 1 Of 4)
G10537635Courtesy of HYUNDAI MOTOR AMERICA

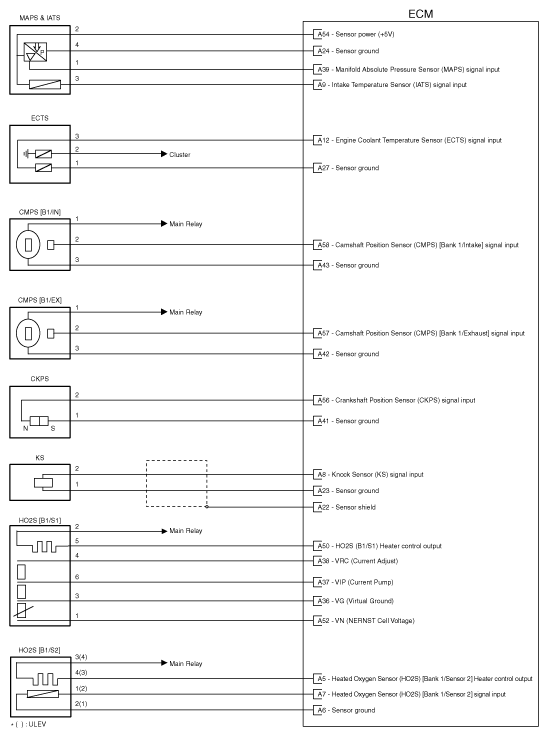

Fig 2: ECM - Circuit Diagram (M/T; 2 Of 4)
G10537636Courtesy of HYUNDAI MOTOR AMERICA

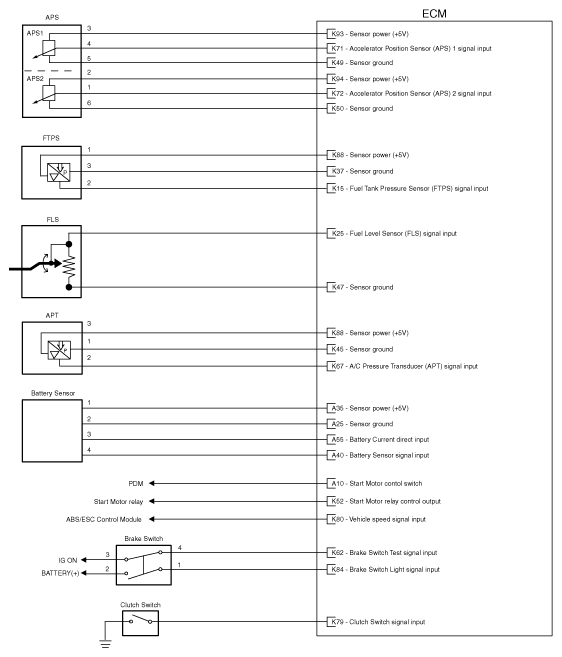

Fig 3: ECM - Circuit Diagram (M/T; 3 Of 4)
G10537637Courtesy of HYUNDAI MOTOR AMERICA

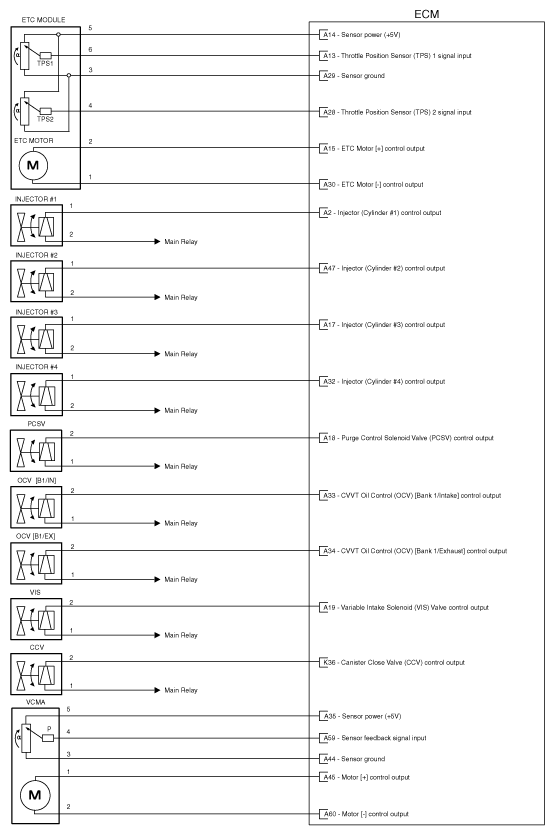

Fig 4: ECM - Circuit Diagram (M/T; 4 Of 4)
G10537638Courtesy of HYUNDAI MOTOR AMERICA
