Basic Troubleshooting Guide

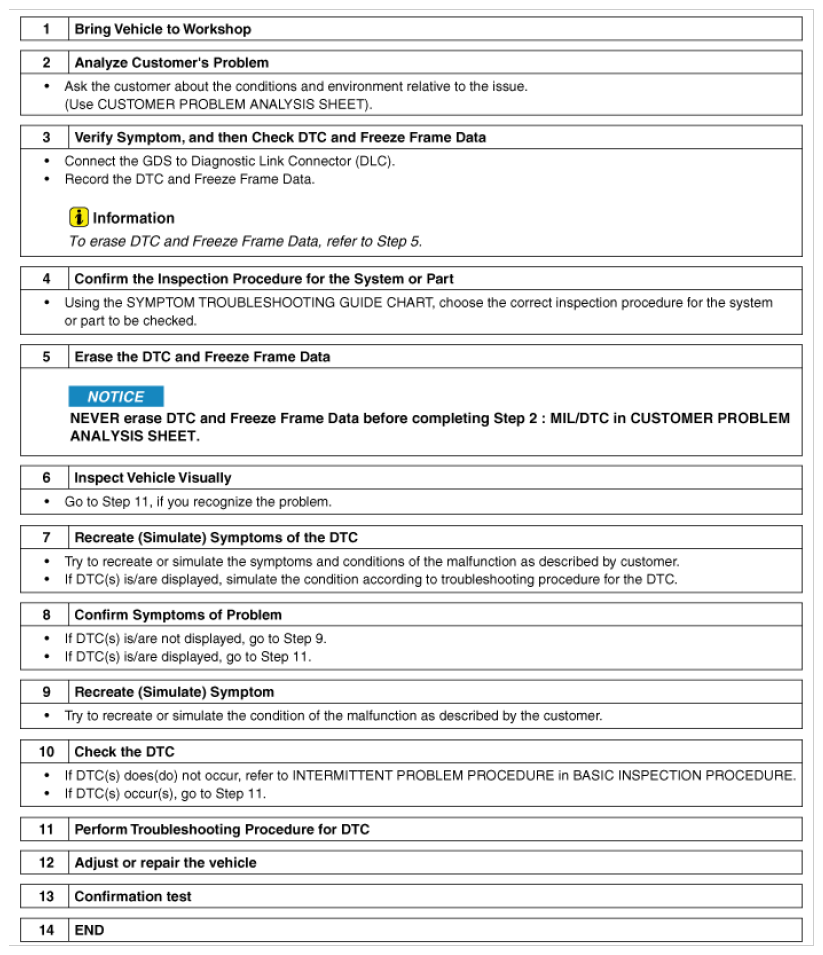

Fig 1: Basic Troubleshooting Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
