Assist Power Window Switch

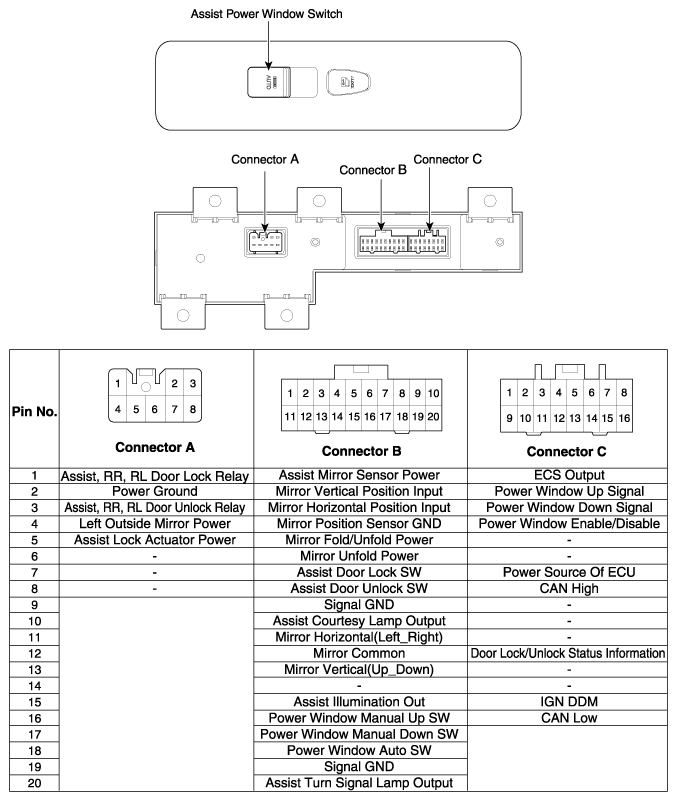

Fig 1: Assist Power Window Switch And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
