Power Window Main Switch

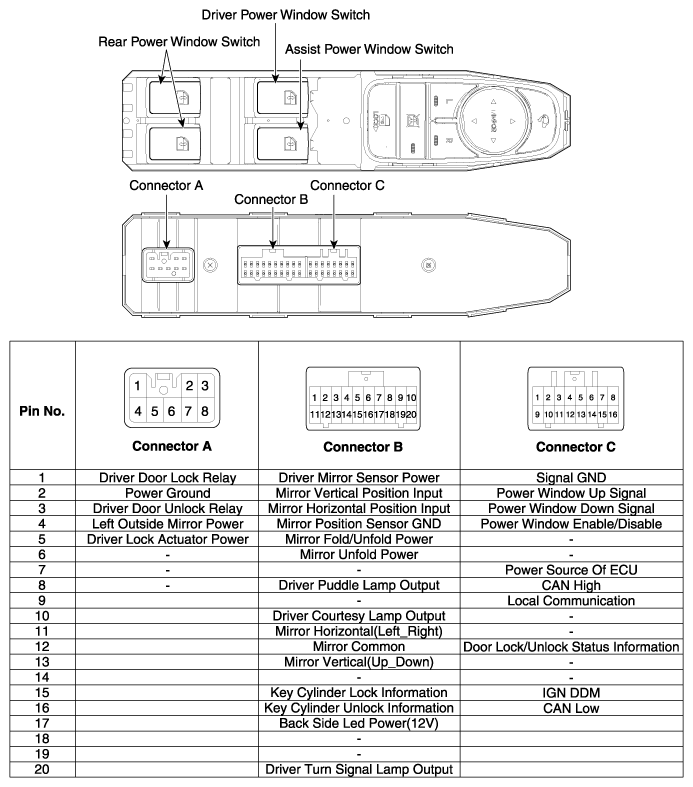

Fig 1: Power Window Main Switch And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
