Charging System: Battery: Troubleshooting

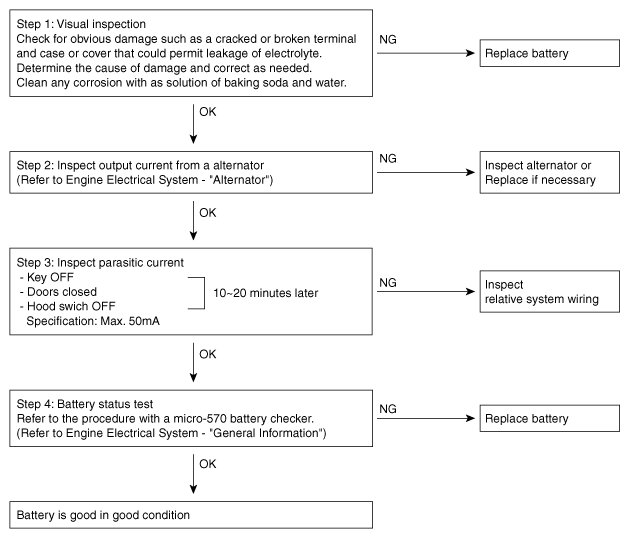

Fig 1: Troubleshooting Chart

G10382496

Courtesy of HYUNDAI MOTOR AMERICA
