Components and Components Location: Component

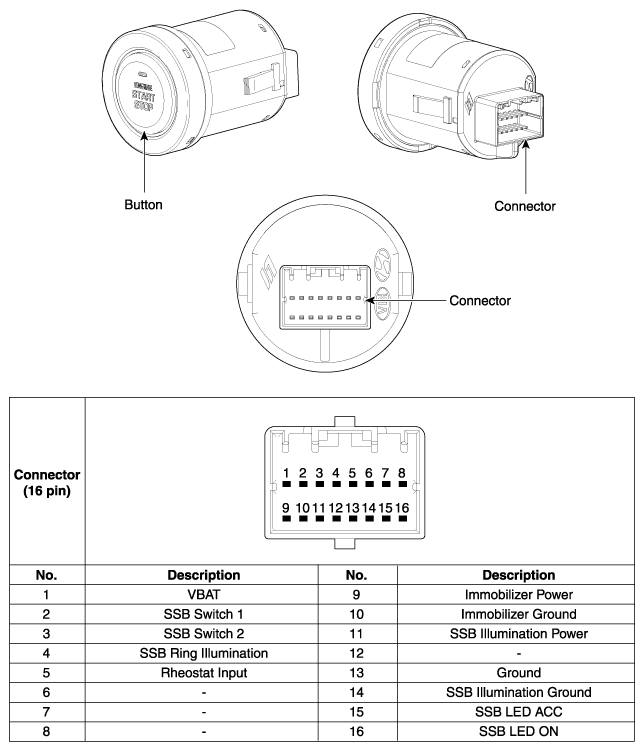

Fig 1: Start/Stop Button Connector Terminal Identification
G10387584Courtesy of HYUNDAI MOTOR AMERICA
