Components Location

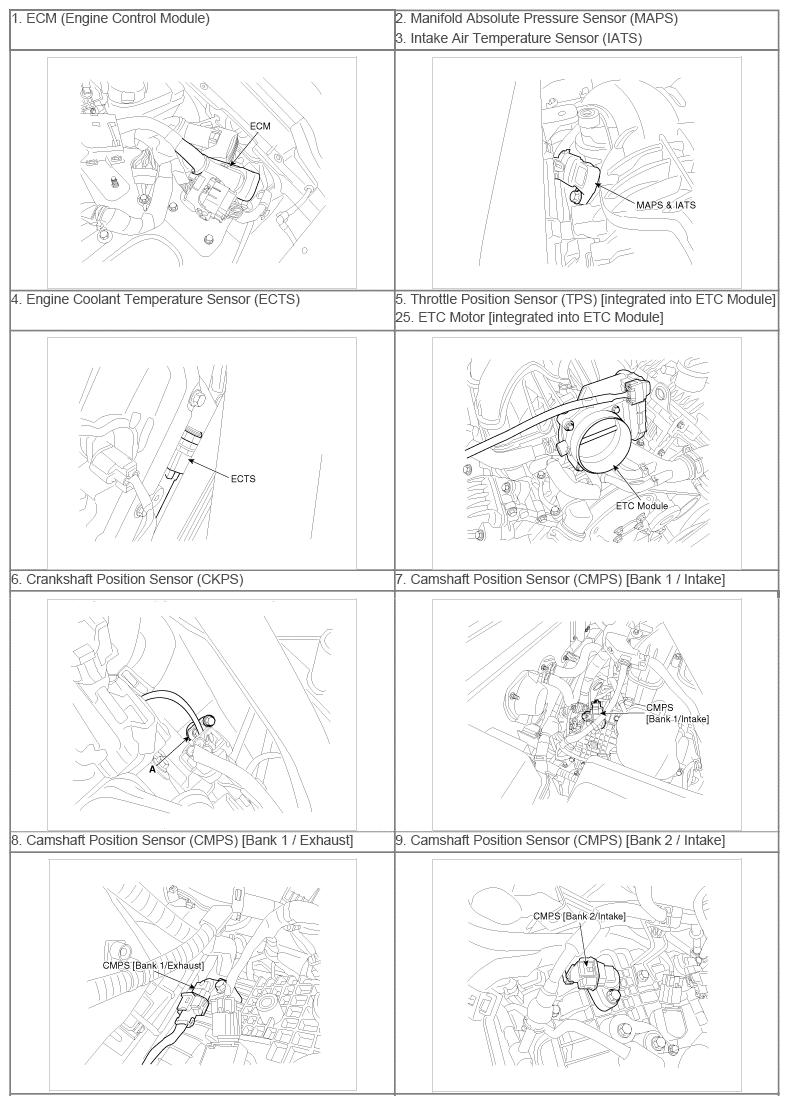

Fig 1: Engine Control System Component Locations (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

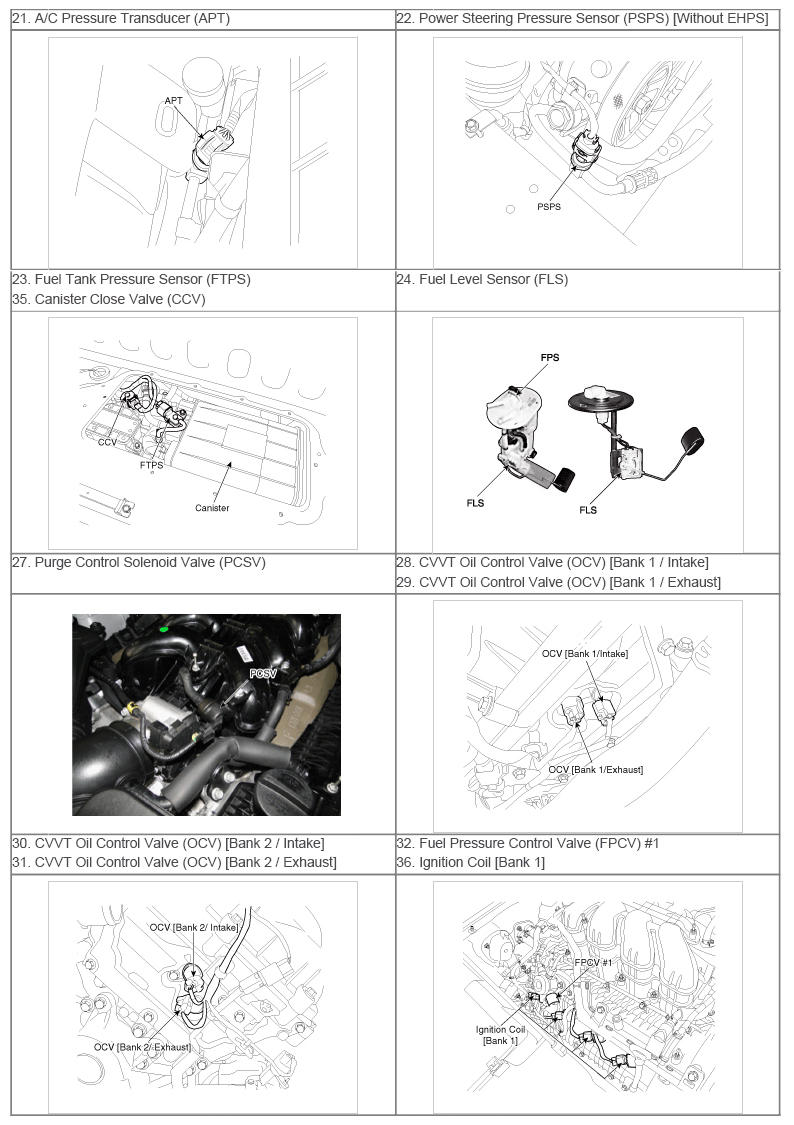

Fig 2: Engine Control System Component Locations (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

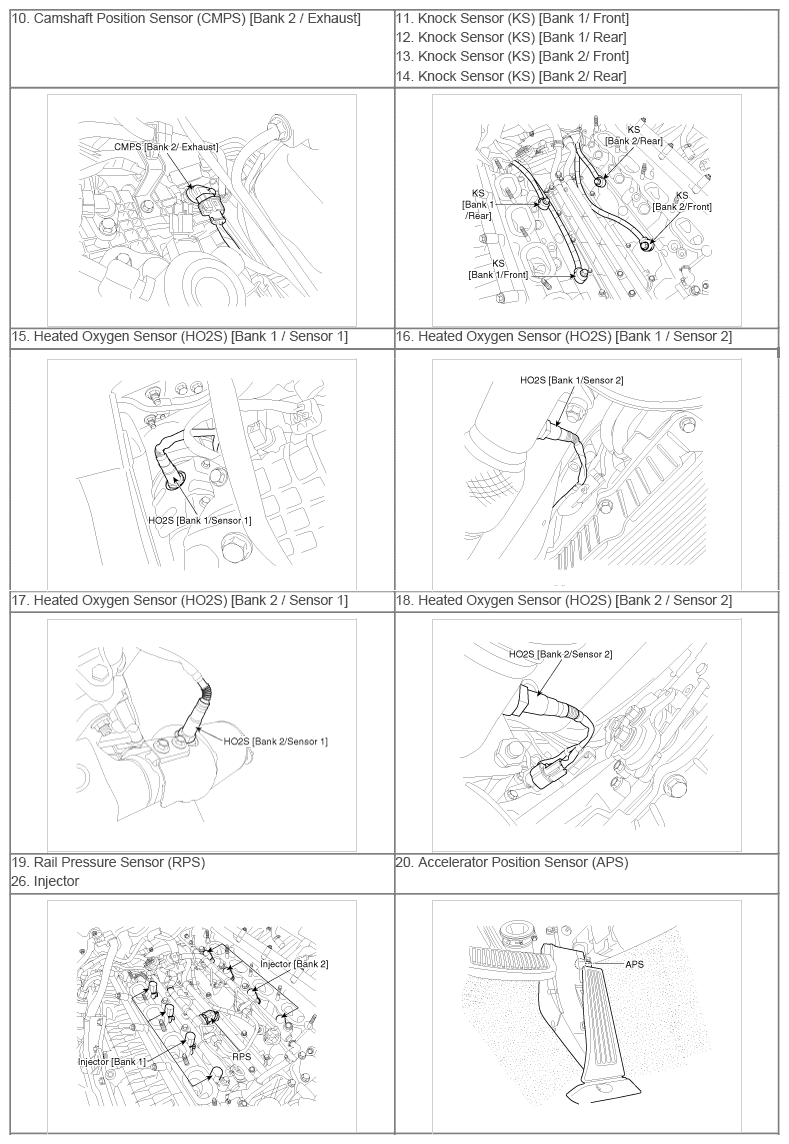

Fig 3: Engine Control System Component Locations (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

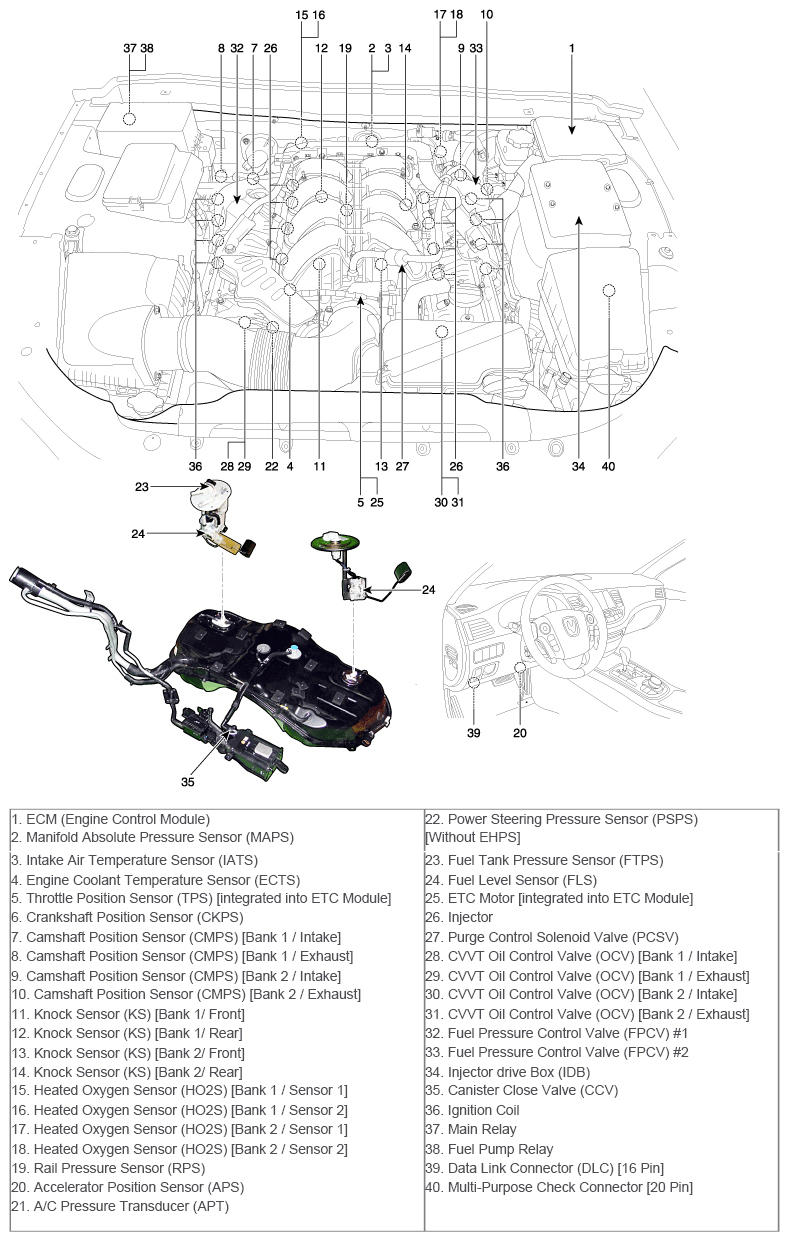

Fig 4: Engine Control System Component Locations (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

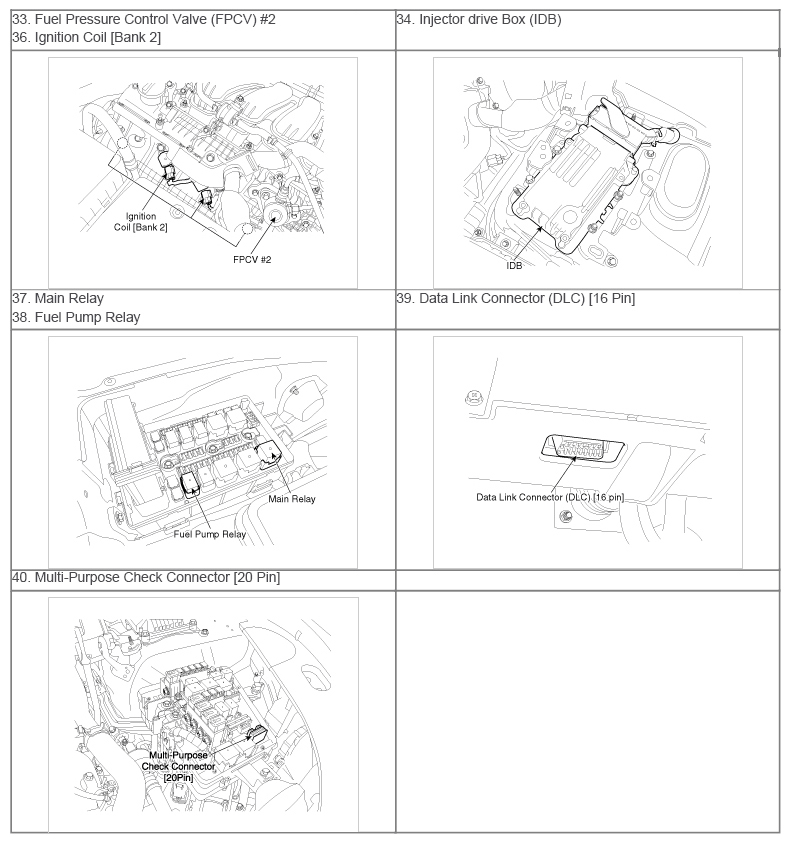

Fig 5: Engine Control System Component Locations (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
