Circuit Diagram

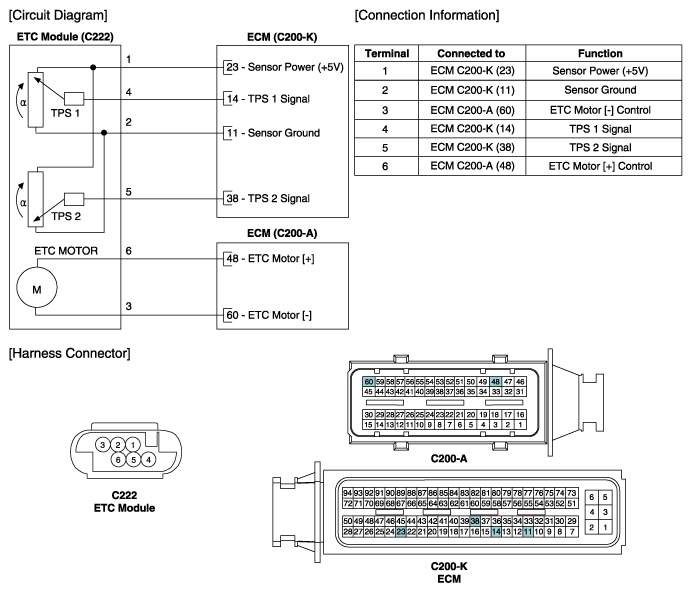

Fig 1: ETC (Electronic Throttle Control) System Circuit Diagram And Connector Terminal Identification
G10382648Courtesy of HYUNDAI MOTOR AMERICA
