Signal Waveform

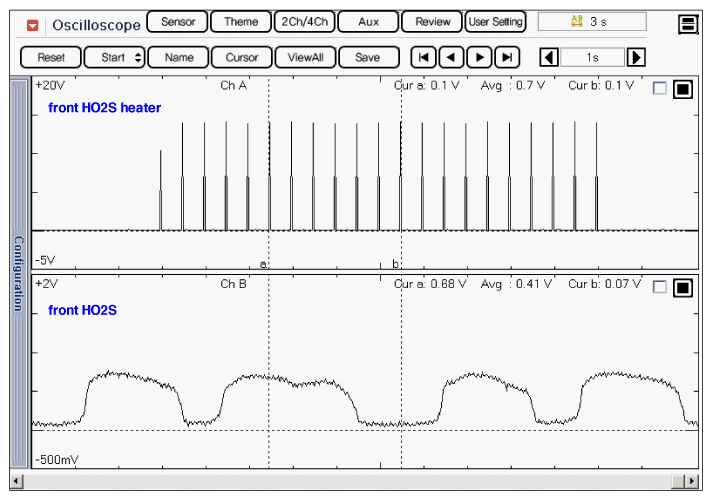

Fig 1: Display - Front HO2S (Upper) Signal Waveform At Idle
G10382678Courtesy of HYUNDAI MOTOR AMERICA

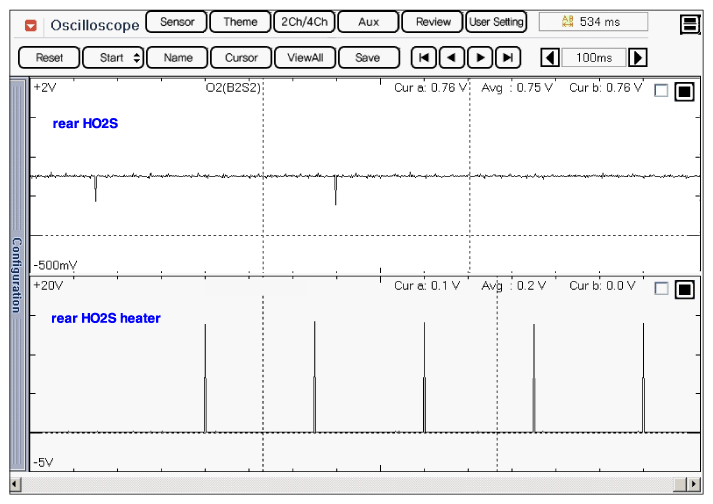

Fig 2: Display - Rear HO2S (Upper) Signal Waveform
G10382679Courtesy of HYUNDAI MOTOR AMERICA

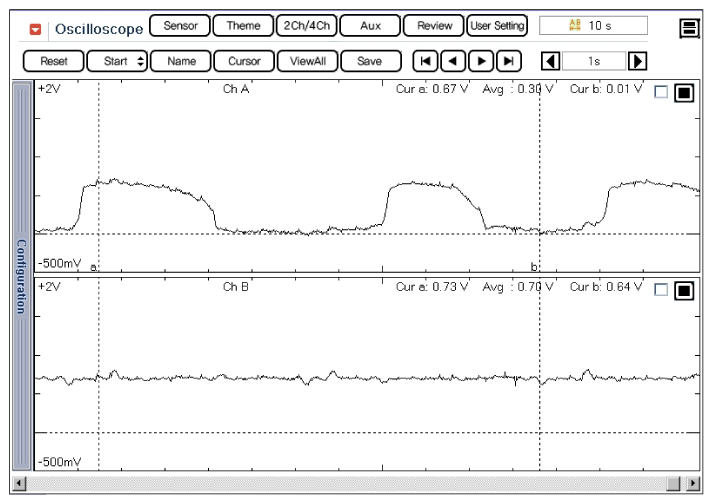

Fig 3: Display - Front HO2S (Upper) Signal Waveform
G10382680Courtesy of HYUNDAI MOTOR AMERICA
