Circuit Diagram

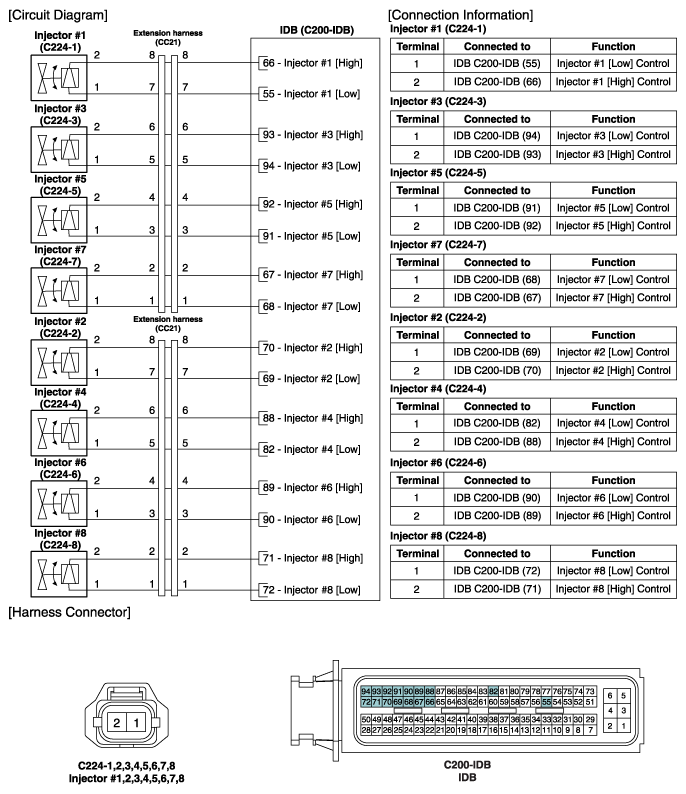

Fig 1: Injector Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
