Basic Troubleshooting Guide

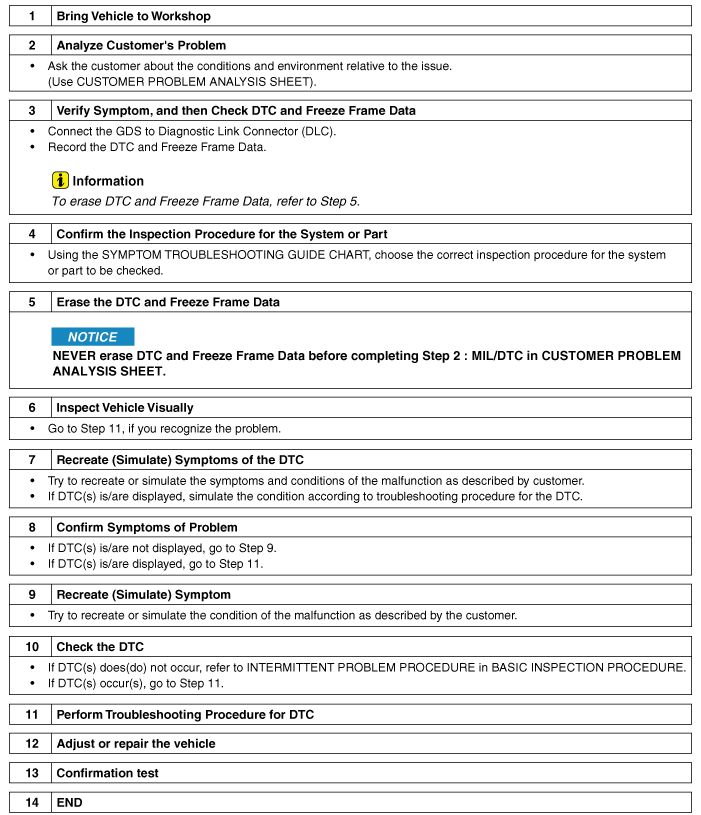

Fig 1: Basic Troubleshooting Guide
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
