Repair procedures: Installation

  1. Installation is reverse of removal.
    CAUTION:
    1. In the case of the vehicle equipped with immobilizer or button engine start system, perform "Key Teaching" procedure.
    2. After exchanging TCM, input the EOL (End of line).

      (Refer to "REPAIR PROCEDURES ")

    3. When replacing the TCM, reset the automatic transmissions values by using the GDS.
    4. Perform TCM learning after replacing the TCM.

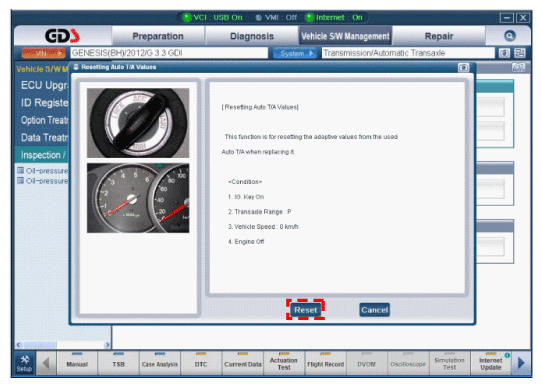

      Fig 1: Display - Resetting Auto/AT Value Screen
      G10382872Courtesy of HYUNDAI MOTOR AMERICA
