Repair procedures: Removal

  1. IG Key "ON".
  2. Connect the GDS in the vehicle.
  3. To read the transfer case data in old ITA (ECU), select "ECU Data Back-up & Writing" service of GDS.

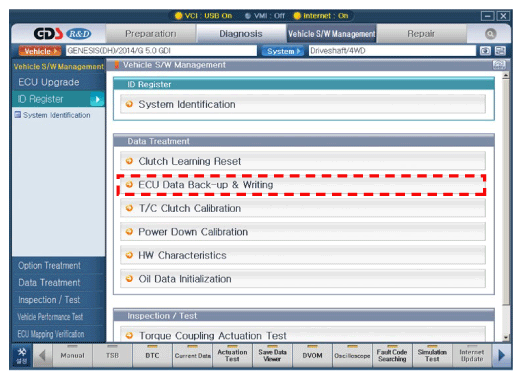

    Fig 1: Display - Read Transfer Case Data Screen
    G10452597Courtesy of HYUNDAI MOTOR AMERICA
  4. IG key "OFF".
  5. Remove the under cover.

    (Refer to "ENGINE ROOM UNDER COVER 3.8L or ENGINE ROOM UNDER COVER 5.0L ")

  6. Disconnect ITA (ECU) connector (A).
    Fig 2: ITA (ECU) Connector
    G10452598Courtesy of HYUNDAI MOTOR AMERICA
  7. Release 2 screws (A).
  8. Remove the 4WD ITA (ECU) (B).
Fig 3: 4WD ITA (ECU) And Screws
G10452599Courtesy of HYUNDAI MOTOR AMERICA
