Removal 5.0L

Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the muffler support bracket (A).
AWD

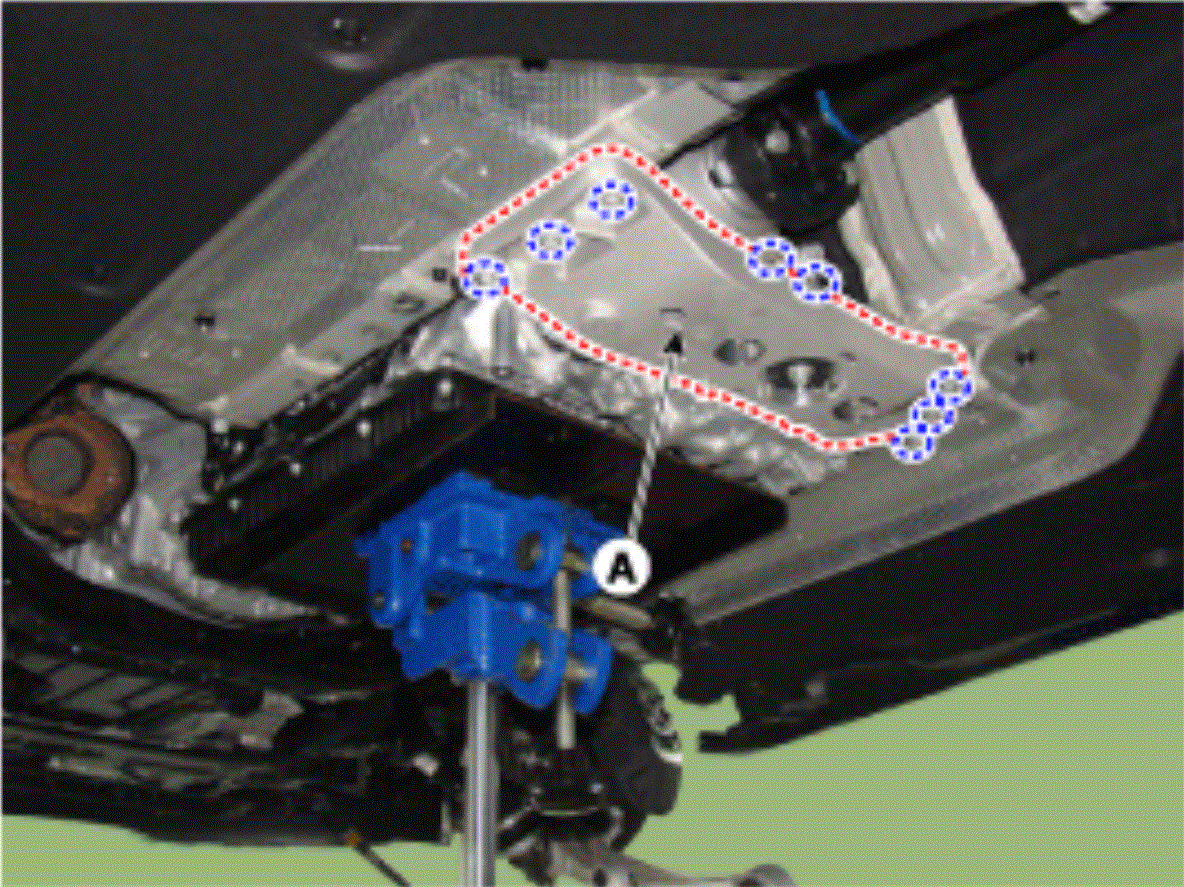

Fig 1: Muffler Support Bracket AWD
Courtesy of HYUNDAI MOTOR AMERICA

2WD

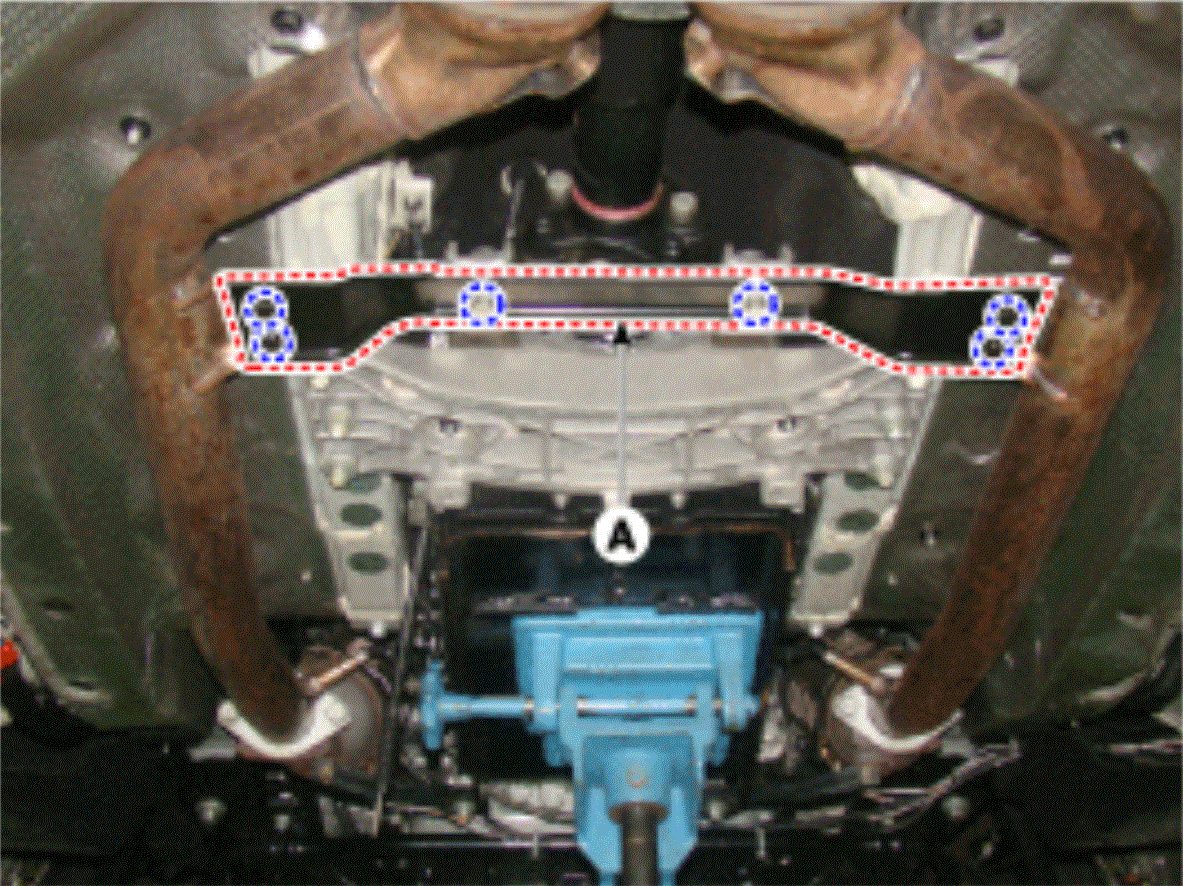

Fig 2: Muffler Support Bracket 2WD
Courtesy of HYUNDAI MOTOR AMERICA
Using the transmission jack, support the transmission.
Remove the transmission cross member (A).
AWD

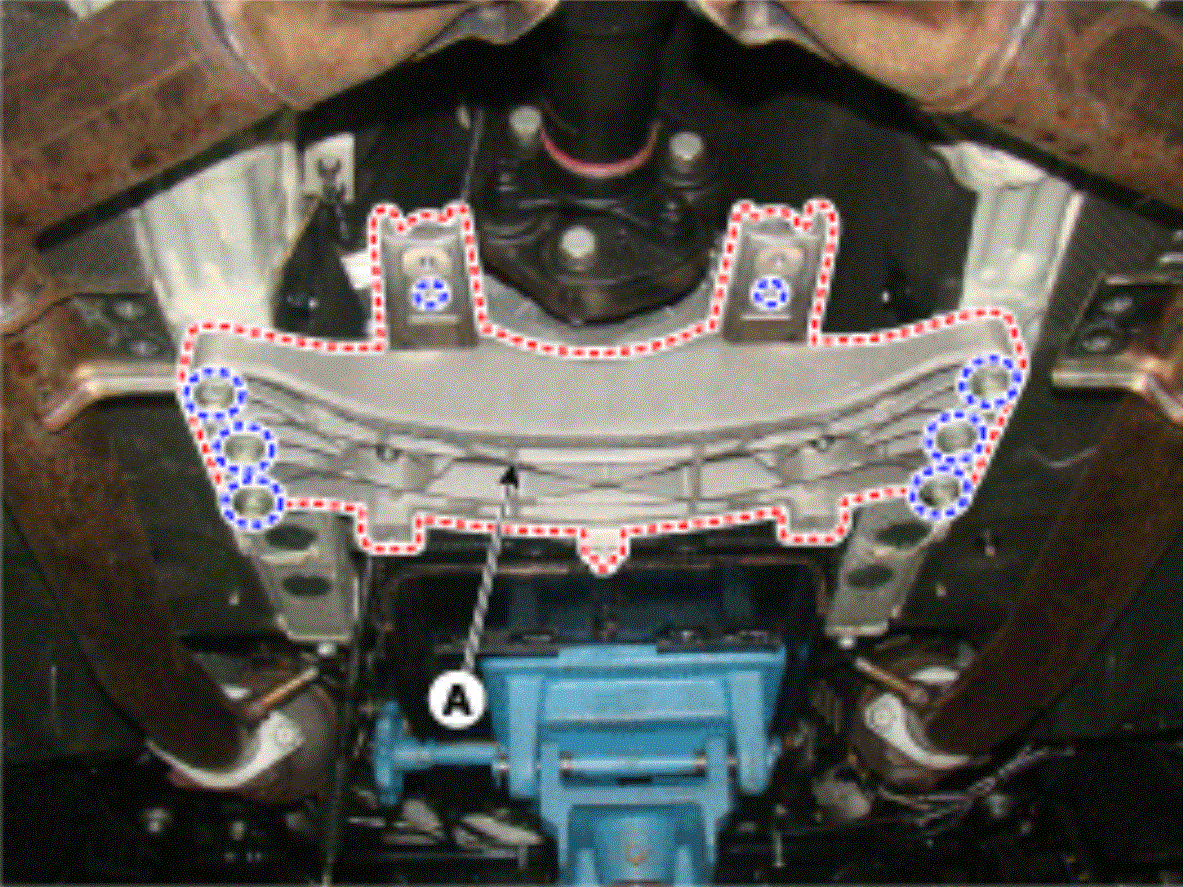

Fig 3: Transmission Cross Member AWD
Courtesy of HYUNDAI MOTOR AMERICA

2WD

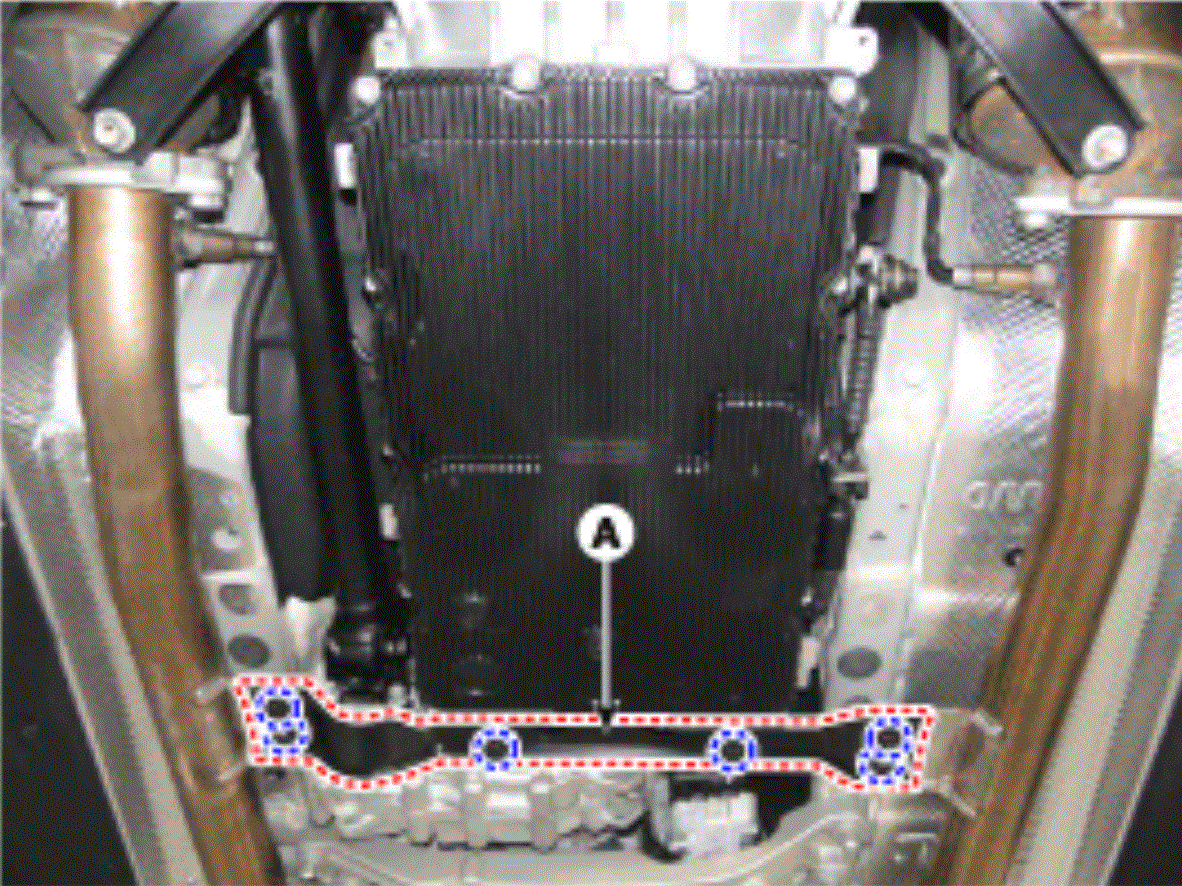

Fig 4: Transmission Cross Member 2WD
Courtesy of HYUNDAI MOTOR AMERICA

NOTE:
To rotate the propeller shaft after setting manual control lever (A) in the "N".

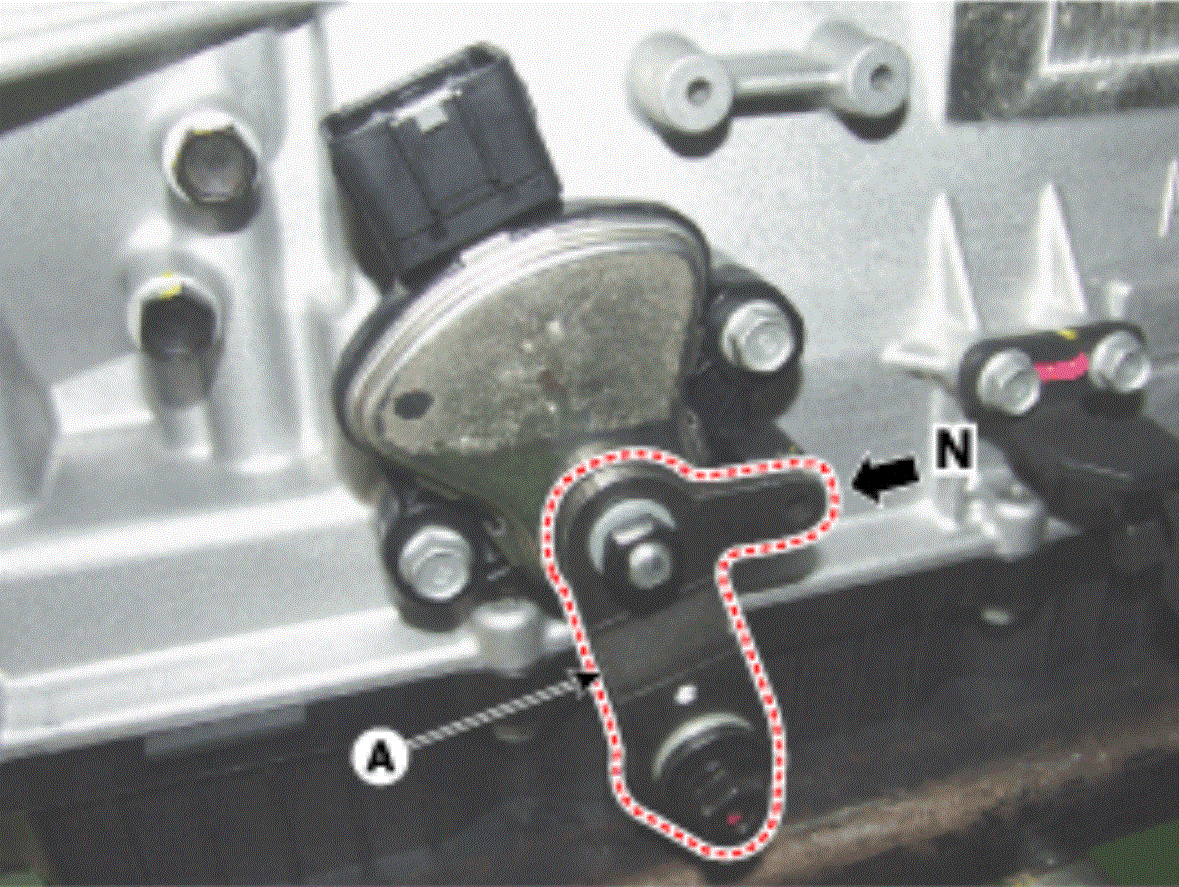

Fig 5: Manual Control Lever
Courtesy of HYUNDAI MOTOR AMERICA
Remove the propeller shaft mounting bolts (A) by rotating the propeller shaft.
Disconnect the rear propeller shaft (B) from the transfer case (AWD) or transmission (2WD).
Propeller shaft mounting torque :

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

AWD

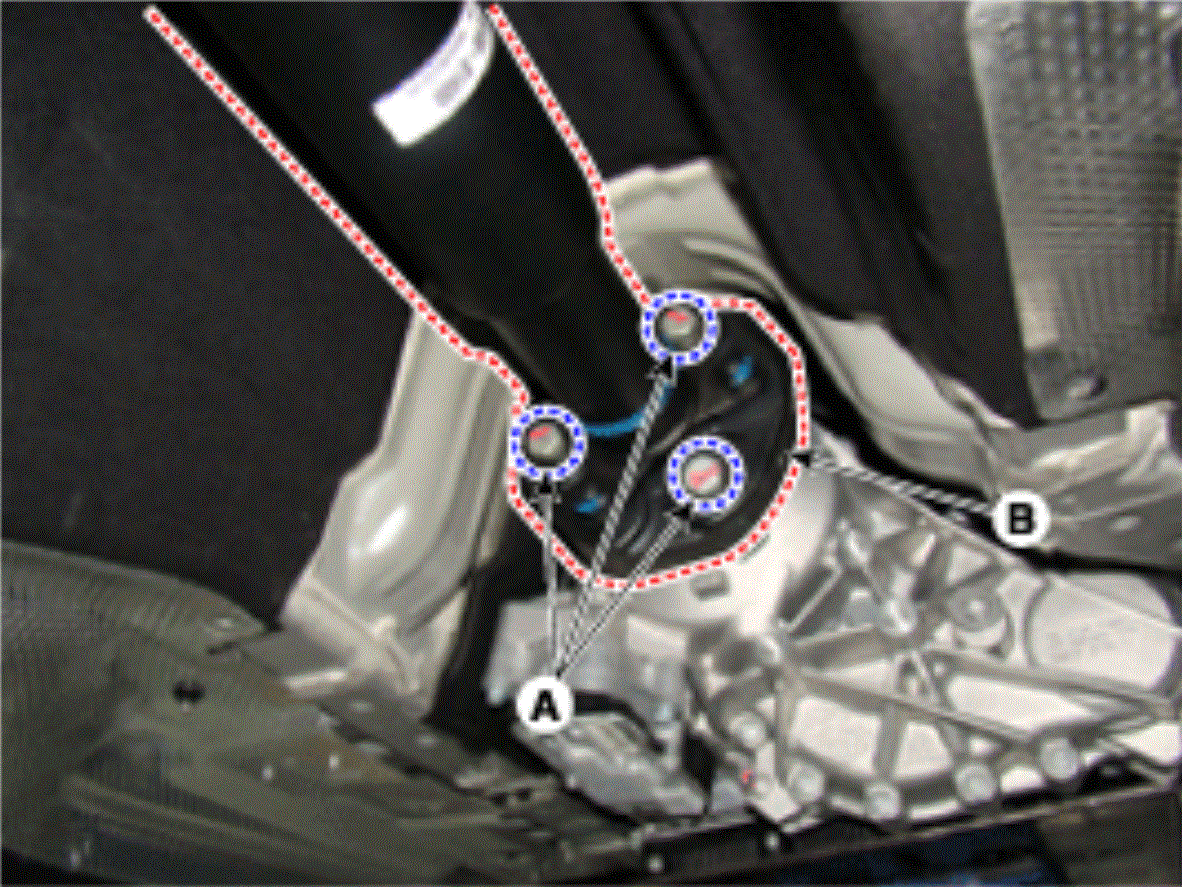

Fig 6: Propeller Shaft Mounting Bolts AWD
Courtesy of HYUNDAI MOTOR AMERICA

2WD

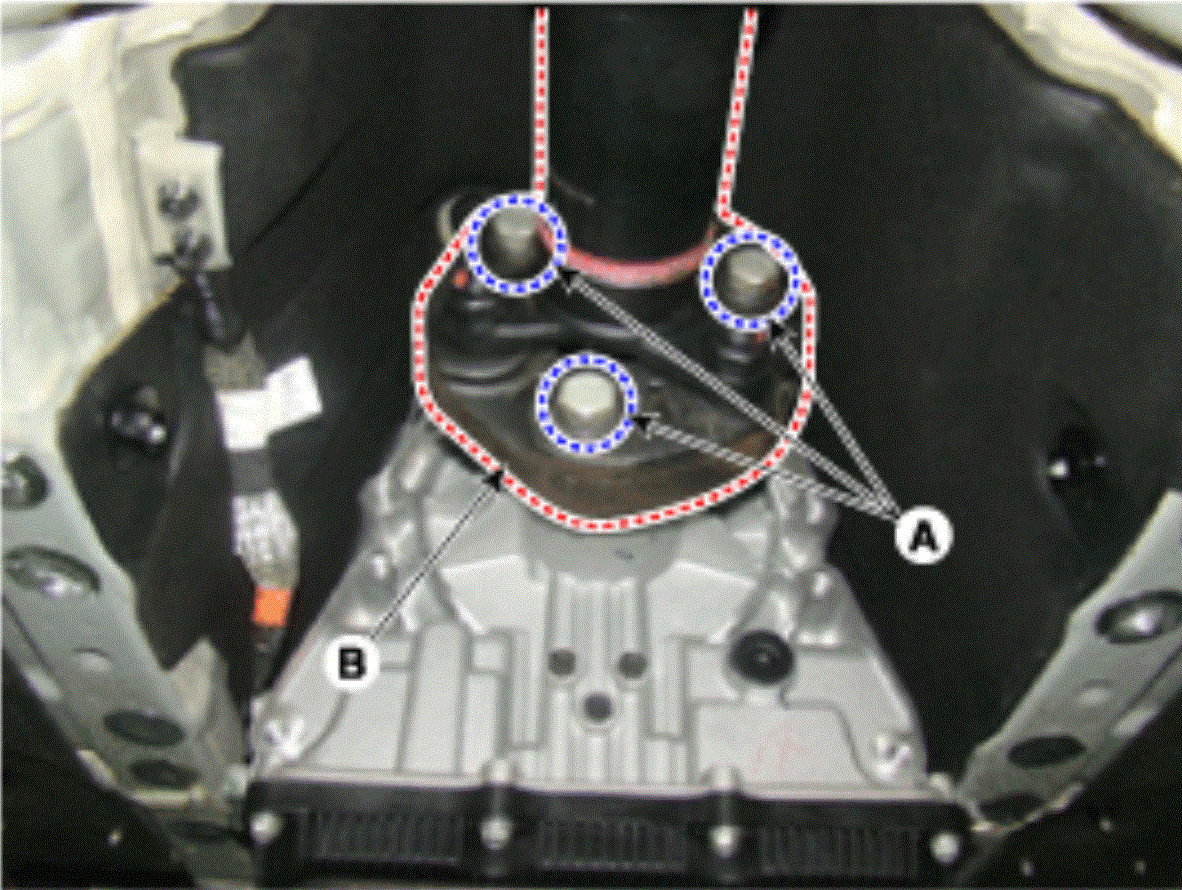

Fig 7: Propeller Shaft Mounting Bolts 2WD
Courtesy of HYUNDAI MOTOR AMERICA
Put down the transmission by adjusting jack.
Disconnect the inhibitor connector (A) and then remove the shift cable by removing nut (B).

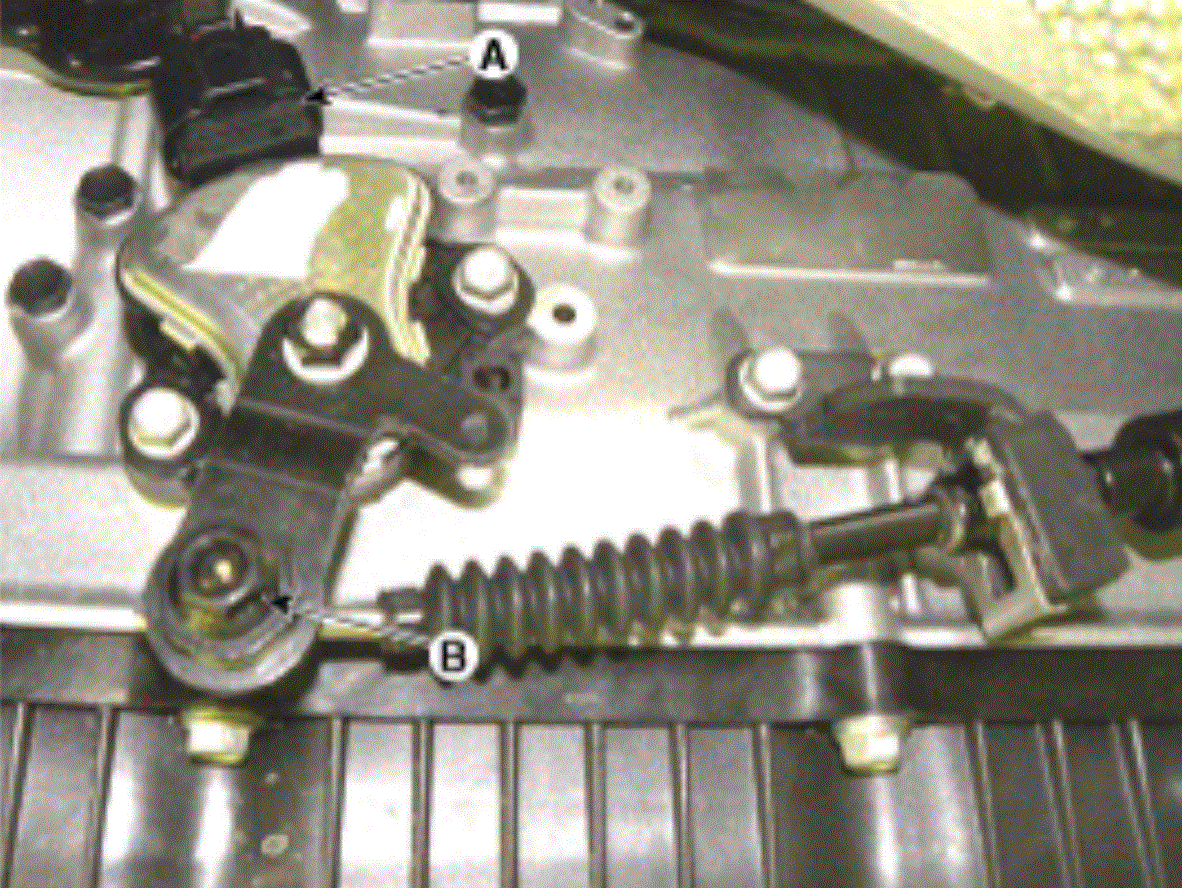

Fig 8: Inhibitor Connector And Shift Cable Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the manual control lever (B) after removing a nut (A).
Remove the inhibitor switch assembly after removing the bolts (C).

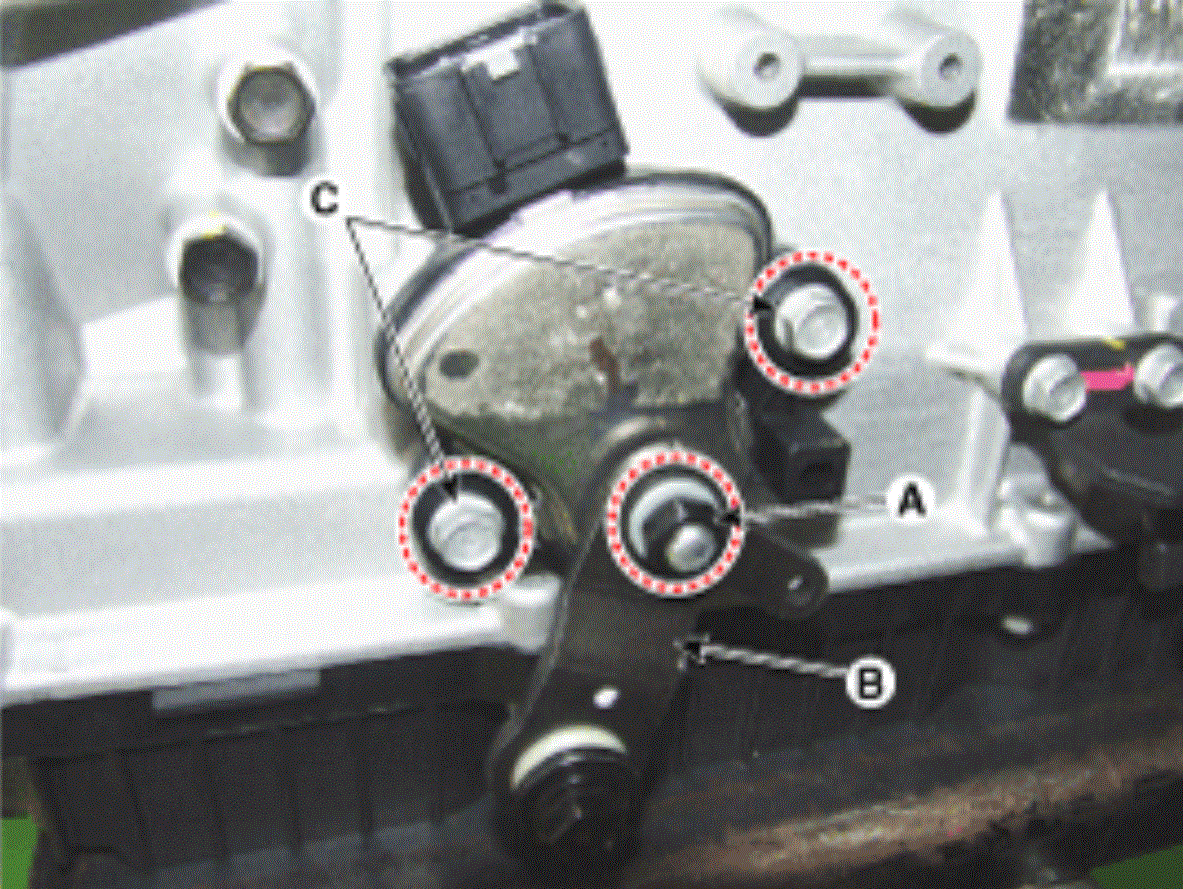

Fig 9: Inhibitor Assembly Mounting Nuts, Manual Control Lever And Nut
Courtesy of HYUNDAI MOTOR AMERICA
