Driver Power Window Switch

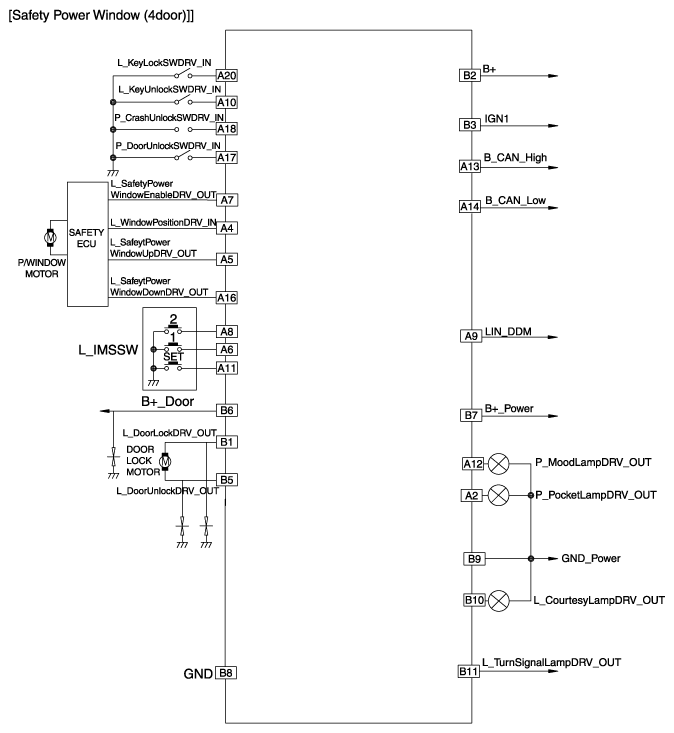

Fig 1: Driver Power Window Switch Circuit Diagram - Safety Power Window (4 Door)
G10454465Courtesy of HYUNDAI MOTOR AMERICA

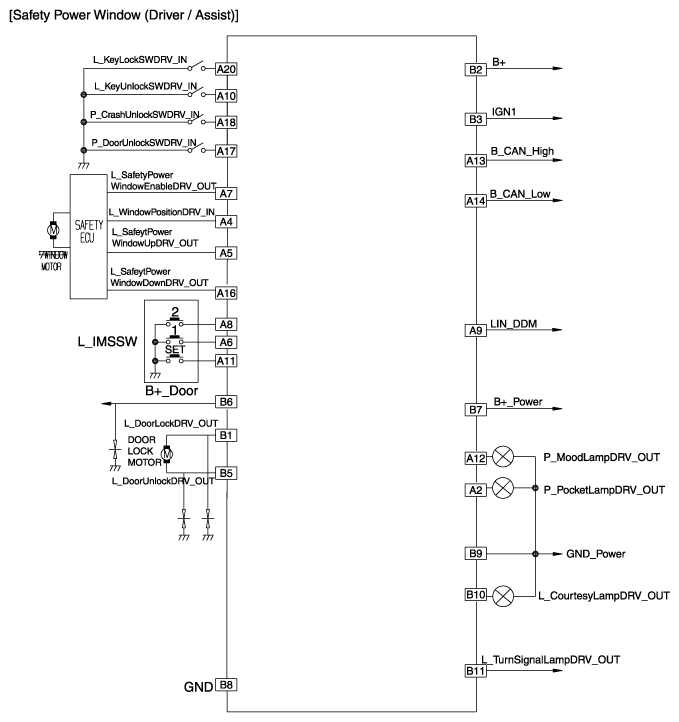

Fig 2: Driver Power Window Switch Circuit Diagram - Safety Power Window (Driver/Assist)
G10454466Courtesy of HYUNDAI MOTOR AMERICA
