Automatic Transmission Control System
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

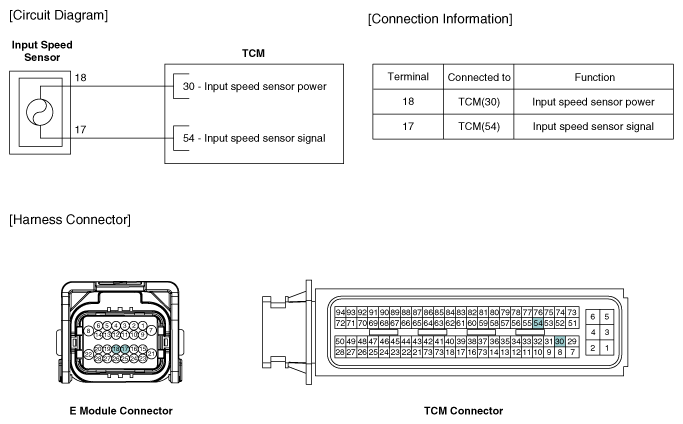

Fig 1: Input Speed Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
