Components Location

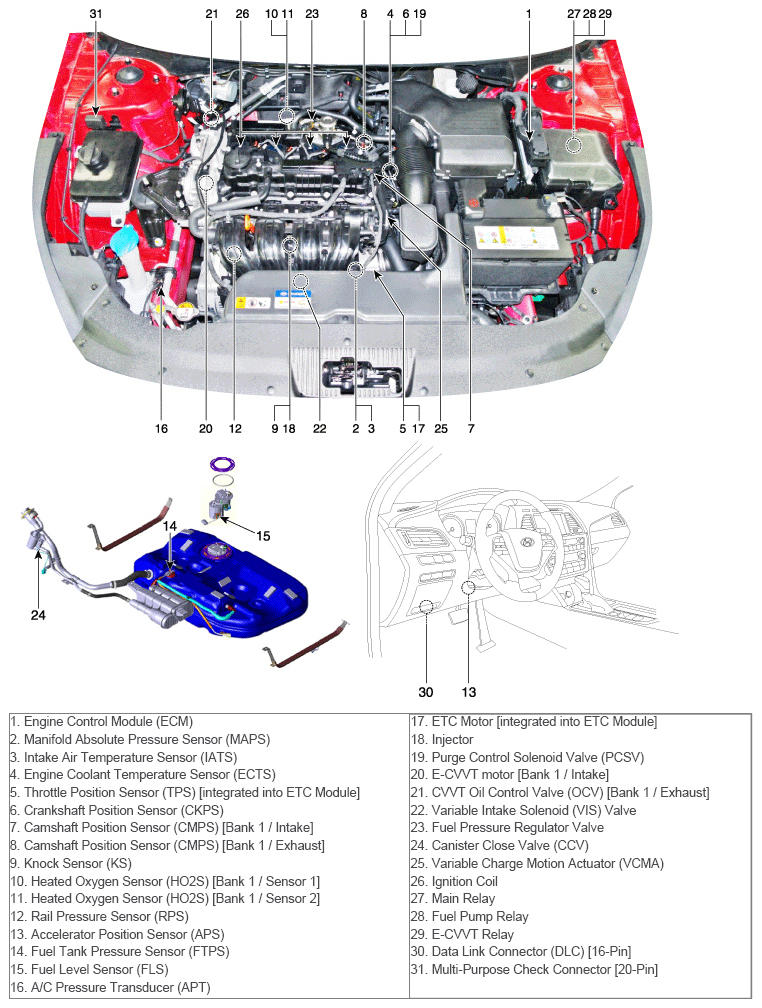

Fig 1: Engine Control/Fuel System Related Components Locations (1 Of 4)
G10573445Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Engine Control/Fuel System Related Components Locations (2 Of 4)
G10573446Courtesy of HYUNDAI MOTOR AMERICA

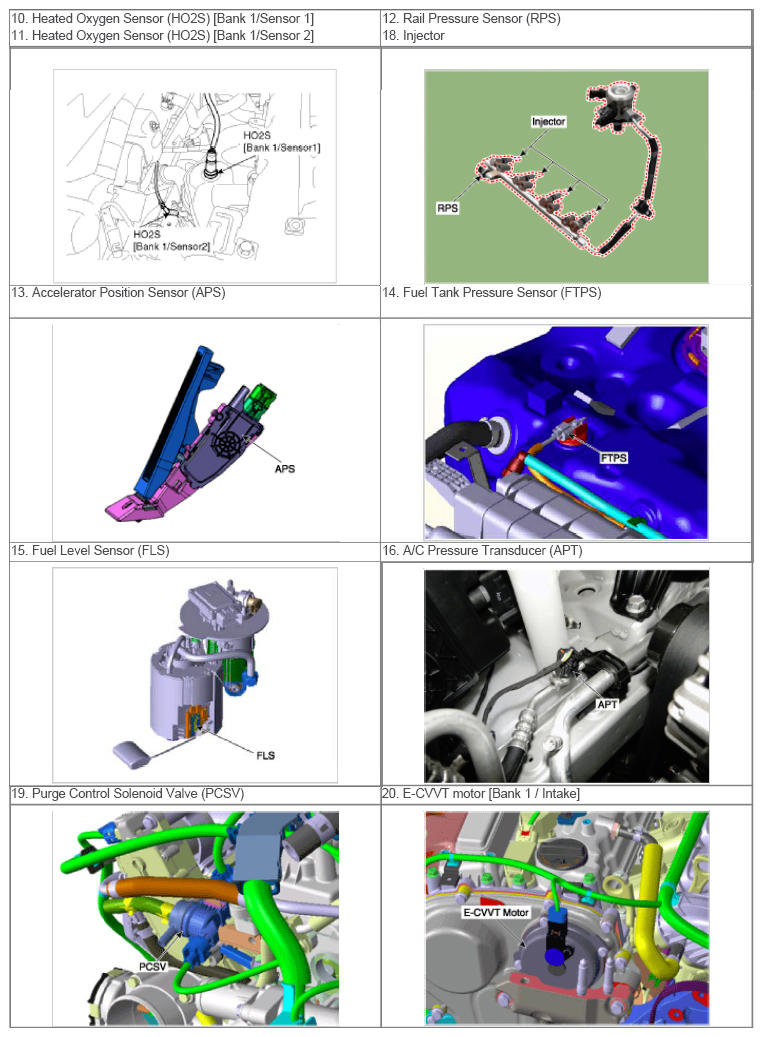

Fig 3: Engine Control/Fuel System Related Components Locations (3 Of 4)
G10573447Courtesy of HYUNDAI MOTOR AMERICA

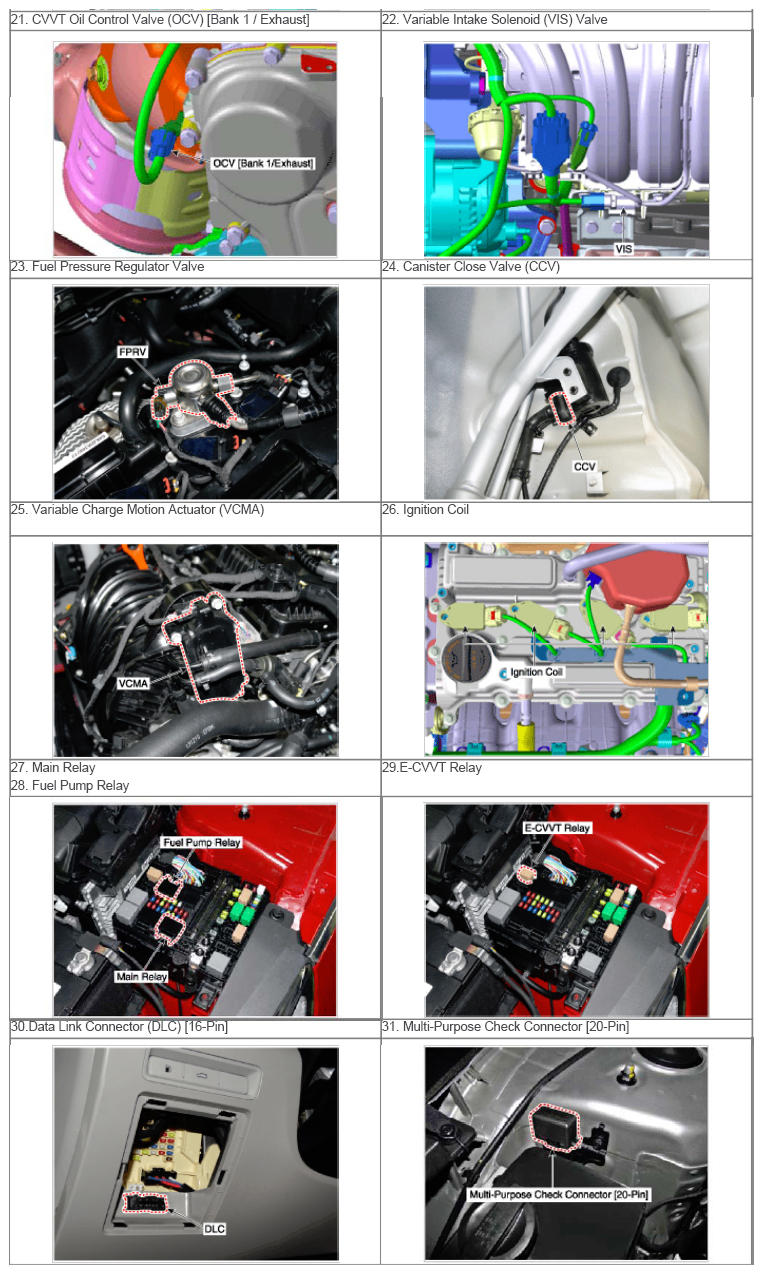

Fig 4: Engine Control/Fuel System Related Components Locations (4 Of 4)
G10573448Courtesy of HYUNDAI MOTOR AMERICA
