Hyundai
>>
2016
>>
Sonata Plug-In Hybrid
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (PHEV)
>>
Fuel Pressure Control Valve
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

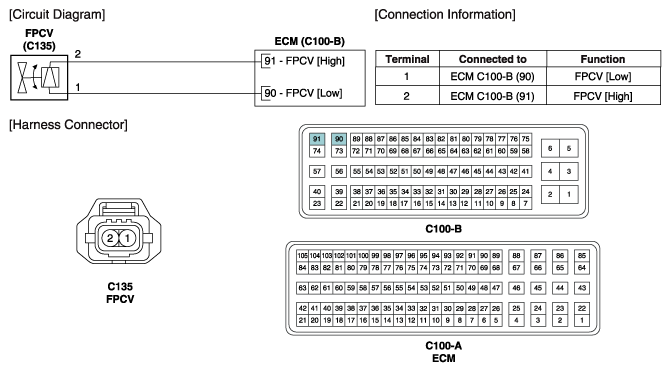

Fig 1: Fuel Pressure Control Valve Schematic Diagrams
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
